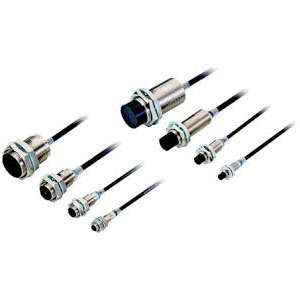

Omron E2EQ-X22B3D30-M1TJ 0.3M Proximity Sensor
The Omron E2EQ-X22B3D30-M1TJ 0.3M Proximity Sensor offers Inductive, M30, Shielded, 22 mm Sensing distance, DC 3-wire PNP NO+NC, M12 Pre-wired Smartclick Connector 0.3 M Cable, 10 to 30 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2EQ Series.
| Brand | Omron |
| Product Type | Proximity Sensor |
| Model Number | E2EQ-X22B3D30-M1TJ 0.3M |
Omron E2EQ-X22B3D30-M1TJ 0.3M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Size | M30 |
| Mounting type | Shielded |
| Sensing Distance | 22 mm |
| Setting Distance | 0 to 16.8 mm |
| Output configuration | DC 3-wire PNP |
| Operation Mode | NO+NC |
| Connection Method | M12 Pre-wired Smartclick Connector 0.3 M Cable |
| Detectable Object | Ferrous metals |
| Standard Sensing Object | 66 Γ 66 Γ 1 mm |
| Response Frequency | 200 Hz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection |
| Ambient Temperature Range | Operating/Storage: -25 to 70Β°C (with no icing or condensation) |
| Degree of Protection | IEC 60529: IP67, JIS C 0920 Annex 1: IP67G |
| Control Output | 1-output models: 10 to 30 VDC, Class 2, 100 mA max,, 2-output models: 10 to 30 VDC, Class 2, 50 mA max. |
| Indicators | In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals) |
| Materials | Fluororesin coating (Base material: brass), Fluorine resin, Fluororesin coating (Base material: brass), Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 200 g |
The Omron E2EQ-X22B3D30-M1TJ 0.3M is often compared with other models in the E2EQ group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron E2EQ-X2B1D8 2M (M8, 2 mm sensing, NO, 2 M Cable), Omron E2EQ-X15D130-T 2M (15 mm sensing, DC 2-wire, NO, 2 M Cable), and Omron E2EQ-X10D1-M1TGJ 0.3M (10 mm sensing, DC 2-wire, NO, M12 Standard Connector 0.3 M Cable) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The E2EQ-X22B3D30-M1TJ 0.3M integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Proximity Sensor.
