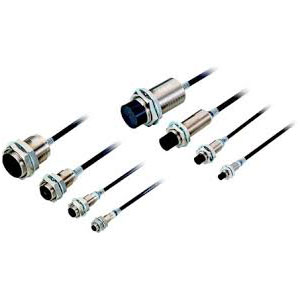

Omron E2EQ-X10B1D30 2M Proximity Sensor
Omron E2EQ-X10B1D30 2M uses an M30 shielded inductive body with 10 mm sensing and a 0 to 8 mm setting range. DC 3-wire PNP NO output is provided through a pre-wired 2 m cable, with 10 to 30 VDC supply and a response frequency of 400 Hz. The E2EQ-X10B1D30 2M belongs to the E2EQ Series featuring fluororesin-coated sensing formats, while different output and connection choices are covered in the broader 10 mm PNP proximity sensor range available among Omron Industrial Sensor Products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EQ-X10B1D30 2M |
Omron E2EQ-X10B1D30 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M30 |
| Mounting type | Shielded |
| Sensing Distance | 10 mm |
| Setting Distance | 0 to 8 mm |
| Output configuration | DC 3-wire PNP |
| Operation Mode | NO |
| Connection Method | Pre-wired 2 M Cable |
| Detectable Object | Ferrous metals |
| Standard Sensing Object | 30 × 30 × 1 mm |
| Response Frequency | 400 Hz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection |
| Ambient Temperature Range | Operating/Storage: -40 to 85°C (with no icing or condensation) |
| Degree of Protection | IEC 60529:IP67, JIS C 0920 Annex 1: IP67G |
| Control Output | 1-output models: 10 to 30 VDC, Class 2, 200 mA max, 2-output models:10 to 30 VDC, Class 2, 100 mA max. |
| Indicators | In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals) |
| Materials | Fluororesin coating (Base material: brass), Fluorine resin, Fluororesin coating (Base material: brass), Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 240 g |
The Omron E2EQ-X10B1D30 2M Proximity Sensor uses an M30 shielded inductive body with a 10 mm sensing distance and a 0 to 8 mm setting range. Its DC 3-wire PNP output operates normally open through a pre-wired 2 m cable, with supply voltage covering 10 to 30 VDC. Response frequency is 400 Hz and the standard sensing object measures 30 × 30 × 1 mm for ferrous metals. The stated 1-output rating reaches 200 mA max. at 10 to 30 VDC. Supply reverse-polarity, surge, output short-circuit, and output reverse-polarity protection are provided.
For an Omron M30 proximity sensor requiring 10 mm sensing, PNP NO output, and direct two-metre cable wiring, the applicable version is the E2EQ-X10B1D30. Operating and storage conditions are specified from -40 to 85°C. IEC 60529 IP67 and JIS C 0920 Annex 1 IP67G are listed, while fluororesin-coated brass, fluorine resin, zinc-plated iron, and PVC appear in the material specification. The format is also suitable for specifications calling for an Omron PNP proximity sensor, Omron 10 mm proximity sensor, or Omron shielded proximity sensor. For a related M30 DC 2-wire model with 20 mm sensing, see E2EQ-X20D130-T 2M.
