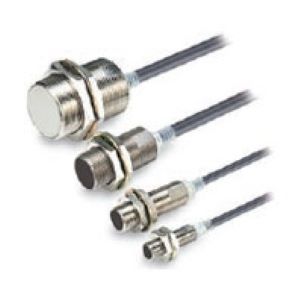

Omron E2E-X7D1-M1TGJ-U 0.3M Proximity Sensor
Omron E2E-X7D1-M1TGJ-U 0.3M features an M18 shielded cylindrical body with 7 mm sensing and a setting distance from 0 to 5.6 mm. DC 2-wire NO operation is connected through an M12 pre-wired Smartclick connector with a 0.3 m PUR cable. The sensor operates from 12 to 24 VDC with a 0.5 kHz response frequency. The E2E-X7D1-M1TGJ-U 0.3M sits within the E2E Series, while other two-wire options can be explored through the M18 2-wire proximity sensor range supplied through Omron Industrial Sensors.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X7D1-M1TGJ-U 0.3M |
Omron E2E-X7D1-M1TGJ-U 0.3M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | Cylindrical |
| Size | M18 |
| Mounting type | Shielded |
| Sensing Distance | 7 mm |
| Setting Distance | 0 to 5.6 mm |
| Output configuration | DC 2-Wire |
| Operation Mode | NO |
| Connection Method | M12 Pre-wired Smartclick Connector 0.3 M Cable |
| Cable specifications | PUR |
| Wire color / pin arrangement | 1: +V, 4: 0 V |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 18 × 18 × 1 mm |
| Response Frequency | 0.5 kHz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient Temperature Range | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Degree of Protection | IEC 60529 IP67 |
| Control Output | 4 to 100 mA, Diagnostic output: 50 mA |
| Indicators | Operation indicator (red) and setting indicator (green) |
| Materials | Stainless steel (SUS303), PBT, Nickel-plated brass, Zinc-plated iron. |
The Omron E2E-X7D1-M1TGJ-U 0.3M Proximity Sensor provides a 7 mm sensing distance from a cylindrical M18 shielded body with a setting range from 0 to 5.6 mm. Its DC 2-wire circuit operates as normally open through an M12 pre-wired Smartclick connector with a 0.3 m PUR cable. Operating voltage is 12 to 24 VDC with a 0.5 kHz response frequency. Ferrous metal is specified using an iron 18 × 18 × 1 mm standard object. Load current ranges from 4 to 100 mA with a 50 mA diagnostic output. Surge suppression and load short-circuit protection are included. The M18 shielded body provides a larger threaded sensing format than M12 versions while retaining a compact Smartclick connection.
For applications specifying an Omron M18 proximity sensor with shielded 7 mm sensing, two-wire NO switching, and short Smartclick wiring, the corresponding model is the E2E-X7D1-M1TGJ-U. Operating temperature covers -25 to 70°C while storage extends from -40 to 85°C, with IEC 60529 IP67 listed. Its specification also fits Omron 2-wire proximity sensor, Omron shielded proximity sensor, and Omron Smartclick proximity sensor requirements. The 7 mm sensing distance provides more clearance than shorter M18 shielded versions while retaining DC two-wire operation. For a related shielded Smartclick model with the same DC 2-wire NO operation in an M12 body, see E2E-X3D1-M1TGJ-U 0.3M.
