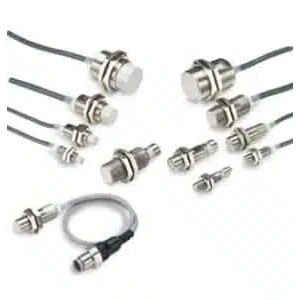

E2E-X7D1-M1TGJ 0.3M: Omron PVC Cable Sensor in Chennai
The technical specifications for the Omron PVC Cable Sensor E2E-X7D1-M1TGJ 0.3M:
- Sensor Head Diameter: M18 (18mm)
- Installation: Flush/Shielded
- Sensing Distance: 7 mm
- Connection Method: M12 Pre-wired Smartclick Connector Models (0.3m)
- Switching: NO
- Cable Specifications: PVC (oil-resistant)
- Output Configuration: DC 2 Wire
- Power Supply Voltage: 12 to 24 VDC
Omron PVC Cable Sensor E2E-X7D1-M1TGJ 0.3M Technical Specification:
| Sensor Head (Dia) | M18 (18mm) |
| Installation | Flush | Shielded |
| Sensing Distance | 7 mm |
| Connection Method | M12 Pre-wired Smart click Connector Models (0.3m) |
| Cable Specifications | PVC (oil-resistant) |
| Switching | NO |
| Output Configuration | DC 2 Wire (No Self-diagnostic Output) |
| Differential travel | 15% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard sensing object | Iron, 18 × 18 × 1 mm |
| Response frequency | 0.5 kHz |
| Power supply voltage | 12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC) |
| Leakage current | 0.8 mA max |
| Indicator | Operation indicator (red) and setting indicator (green) |
| Protection circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient air temperature | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Ambient humidity | Operating/storage: 35% to 95% (with no condensation) |
| Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Degree of protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Material Case | Stainless steel (SUS303) |
| Material Sensing surface | PBT |
Looking for the Omron E2E-X7D1-M1TGJ 0.3M in Chennai? You’re at the right place. This Omron PVC Cable Sensor has an M18 (18mm) head, flush and shielded installation, 7 mm sensing distance, 0.3m M12 pre-wired Smartclick connector models, Normally Open (NO) switching, DC 2 Wire output, 0.5 kHz response frequency, and operates on 12-24 VDC power. It has a maximum of 15% differential travel and is designed for detecting ferrous metal. Get the best prices at IndMALL Automation.
