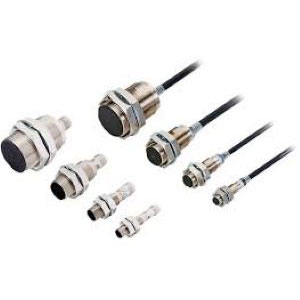

Omron E2E-X40MC2L30 2M Proximity Sensor
The Omron E2E-X40MC2L30 2M Proximity Sensor offers Inductive, M30, Unshielded, 40 mm Sensing distance, DC 3-Wire NPN NC, Long Body, Pre-wired 2 M Cable, 10 to 30 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2E Series.
| Brand | Omron |
| Product Type | Proximity Sensor |
| Model Number | E2E-X40MC2L30 2M |
Omron E2E-X40MC2L30 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Size | M30 |
| Mounting type | Unshielded |
| Sensing Distance | 40 mm |
| Setting Distance | 0 to 32 mm |
| Output configuration | DC 3-Wire NPN |
| Operation Mode | NC |
| Body Length | Long Body |
| Connection Method | Pre-wired 2 M Cable |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 120 Γ 120 Γ 1 mm |
| Response Frequency | 100 Hz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection |
| Ambient Temperature Range | Operating/Storage: -25 to 70Β°C |
| Degree of Protection | IEC 60529:IP67, ISO 20653 |
| Control Output | 1-output models: 10 to 30 VDC, Class 2, 100 mA max, 2-output models: 10 to 30 VDC, Class 2, 50 mA max |
| Indicators | In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals) |
| Materials | Nickel-plated bras, Polybutylene terephthalat (PBT), Nickel-plated brass, Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 280 g |
The Omron E2E-X40MC2L30 2M is often compared with other models in the E2E Proximity Sensor group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron E2E-X22B230-M1 (22 mm sensing, DC 3-Wire PNP, M12 Connector), Omron E2E-X16MB2L12-M1 (M12, 16 mm sensing, DC 3-Wire PNP, M12 Connector), and Omron E2E-X1R5B1T8-M1 (M8, 1.5 mm sensing, DC 3-Wire PNP, NO, M12 Connector) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The E2E-X40MC2L30 2M integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Proximity Sensor.
