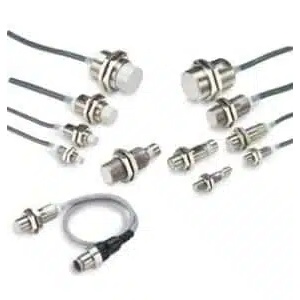

E2E-X3D1-M1GJ 0.3M - Omron Proximity Sensor NO
Technical Specifications of E2E-X3D1-M1GJ 0.3M Omron Proximity Sensor NO
| Spec | Value |
|---|
| Brand | Omron |
| Product Type | Proximity Sensors |
| Product | E2E-X3D1-M1GJ 0.3M |
Omron Proximity Sensor NO E2E-X3D1-M1GJ 0.3M Technical Specifications:
| Specification | Value |
|---|
| Size | M12 |
| Mounting type | Shielded |
| Sensing Distance | 3 mm |
| Setting distance | 0 to 2.4 mm |
| Output type | DC 2-wire |
| Operation mode | NO |
| Power supply | 12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC) |
| Connection method | M12 Standard Prewired Connector Models (0.3 m) |
| Cable Specifications | PVC (oil-resistant) |
| Differential travel | 10% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard target | Iron, 12 × 12 × 1 mm |
| Response frequency | 1 kHz |
| Leakage current | 0.8 mA max. |
| Indicator | Operation indicator (red) and setting indicator (green) |
| Protection circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient temperature range | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Ambient humidity | Operating/storage: 35% to 95% (with no condensation) |
| Temperature influence | ±10% max. of sensing distance at 23°C in the temperature range of −25 to 70°C |
| Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength | 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection | IP67 |
