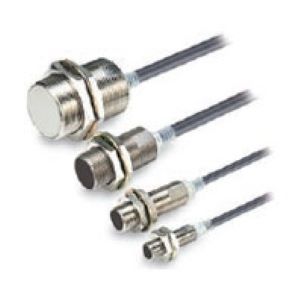

Omron E2E-X20MD1S 2M Proximity Sensor
Omron E2E-X20MD1S 2M is a cylindrical M30 unshielded inductive proximity sensor with a 20 mm sensing distance and 0 to 16 mm setting distance. It provides DC 2-wire NO operation through a PVC pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 54 × 54 × 1 mm standard sensing object. Response frequency is 0.1 kHz, while control output is rated from 3 to 100 mA with a 50 mA diagnostic output. Red and green LEDs indicate operation and setting status. The E2E-X20MD1S 2M is included among M30 long-range proximity sensors from Omron industrial sensing technology.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X20MD1S 2M |
Omron E2E-X20MD1S 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | Cylindrical |
| Size | M30 |
| Mounting type | Unshielded |
| Sensing Distance | 20 mm |
| Setting Distance | 0 to 16 mm |
| Output configuration | DC 2-Wire |
| Operation Mode | NO |
| Connection Method | Pre-wired 2 M Cable |
| Cable specifications | PVC (Oil-resistant) |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 54 × 54 × 1 mm |
| Response Frequency | 0.1 kHz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient Temperature Range | Operating/storage: 35% to 95% (with no condensation) |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 3 to 100 mA, Diagnostic output: 50 mA |
| Indicators | Operation indicator (red) and setting indicator (green) |
| Materials | Nickel-plated brass, Polybutylene terephthalat (PBT), Nickel-plated brass, Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 175 g |
The Omron E2E-X20MD1S 2M Proximity Sensor uses a cylindrical M30 unshielded inductive sensing body with a 20 mm sensing distance and a 0 to 16 mm setting distance. It provides DC 2-wire NO switching through a pre-wired 2 m PVC cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 54 × 54 × 1 mm standard sensing object. Response frequency is 0.1 kHz. Control output is rated from 3 to 100 mA, while diagnostic output is rated 50 mA. Red and green LEDs indicate operation and setting status. Surge suppression and load short-circuit protection are specified.
The supplied operating and storage condition for the E2E-X20MD1S is 35% to 95% relative humidity without condensation. IEC 60529 IP67 and an in-house oil-resistant rating are listed for protection. Nickel-plated brass, PBT, zinc-plated iron, and PVC are specified among the construction materials. The unshielded M30 configuration combines a 20 mm sensing range with DC 2-wire NO operation and direct cable wiring. Ferrous metal remains the stated detection target, while the 0 to 16 mm setting range defines the specified installation range. For another E2E model with PNP output, an M18 body, and 16 mm sensing distance, see E2E-X16MB1D18-M1.
