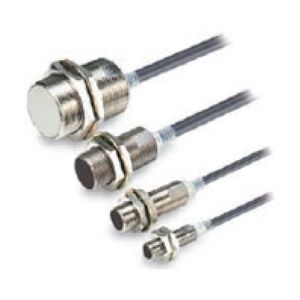

Omron E2E-X1R5Y2 2M Proximity Sensor
Omron E2E-X1R5Y2 2M is a compact M8 shielded inductive proximity sensor with a 1.5 mm sensing distance and 0 to 1.2 mm setting distance. It uses AC 2-wire NC switching through an oil-resistant PVC pre-wired 2 m cable and operates from 24 to 240 VAC. Ferrous metal is the specified detectable object, with an iron 8 × 8 × 1 mm standard sensing object. Response frequency is 25 Hz, while control output is rated from 5 to 100 mA. A red operation indicator and surge suppression are specified. The E2E-X1R5Y2 2M is grouped with compact M8 proximity sensors from Omron sensing and control products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X1R5Y2 2M |
Omron E2E-X1R5Y2 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | Cylindrical |
| Size | M8 |
| Mounting type | Shielded |
| Sensing Distance | 1.5 mm |
| Setting Distance | 0 to 1.2 mm |
| Output configuration | AC 2-Wire |
| Operation Mode | NC |
| Connection Method | Pre-wired 2 M Cable |
| Cable specifications | PVC (Oil-resistant) |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 8 × 8 × 1 mm |
| Response Frequency | 25 Hz |
| Power Supply Voltage | 24 to 240 VAC |
| Protection Circuit | Surge suppressor |
| Ambient Temperature Range | Operating/Storage: −25 to 70°C (with no icing or condensation) |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 5 to 100 mA |
| Indicators | Operation indicator (red) |
| Materials | Stainless steel (SUS303), PBT, Nickel-plated brass, Zinc-plated iron. |
| Weight | Approx. 60 g |
The Omron E2E-X1R5Y2 2M Proximity Sensor uses a cylindrical M8 shielded inductive sensing body with a 1.5 mm sensing distance and a 0 to 1.2 mm setting distance. It provides AC 2-wire NC operation through an oil-resistant PVC pre-wired 2 m cable and operates from 24 to 240 VAC. Ferrous metal is the specified detectable object, with an iron 8 × 8 × 1 mm standard sensing object. Response frequency is 25 Hz, while control output is rated from 5 to 100 mA. A red operation indicator is provided, and surge suppression is specified for the sensing circuit. The small M8 format supports compact machine mounting locations.
Operating and storage conditions for the E2E-X1R5Y2 cover -25 to 70°C without icing or condensation. IEC 60529 IP67 and an in-house oil-resistant rating are listed. SUS303 stainless steel, PBT, nickel-plated brass, and zinc-plated iron are specified among the construction materials. The shielded M8 sensing arrangement supports mounting close to surrounding metal, while its 1.5 mm sensing distance is paired with AC 2-wire NC operation. The oil-resistant pre-wired cable provides direct machine connection, and ferrous metal remains the stated sensing target. For another E2E model in the supplied comparison set with an M18 body and extended 30 mm sensing distance, see E2E-X30MB1TL18-M1.
