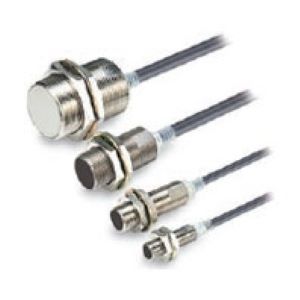

Omron E2E-X1R5F2 2M Proximity Sensor
Omron E2E-X1R5F2 2M is a cylindrical M8 shielded inductive proximity sensor with a 1.5 mm sensing distance and 0 to 1.2 mm setting distance. It provides a DC 3-wire PNP output with NC operation through an oil-resistant PVC pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 8 × 8 × 1 mm standard sensing object. Response frequency is 2 kHz, while control output is rated 200 mA max. A red LED indicates operation. The E2E-X1R5F2 2M is included among compact M8 proximity sensors from Omron automation sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X1R5F2 2M |
Omron E2E-X1R5F2 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | Cylindrical |
| Size | M8 |
| Mounting type | Shielded |
| Sensing Distance | 1.5 mm |
| Setting Distance | 0 to 1.2 mm |
| Output configuration | DC 3-wire PNP |
| Operation Mode | NC |
| Connection Method | Pre-wire 2 M Cable |
| Cable specifications | PVC (oil-resistant) |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 8 × 8 × 1 mm |
| Response Frequency | 2 kHz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Load short-circuit protection, Surge suppressor, Reverse polarity protection |
| Ambient Temperature Range | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 200 mA max |
| Indicators | Operation indicator (red) |
| Materials | Nickel-plated brass, Polybutylene terephthalat (PBT), Nickel-plated brass, Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 65 g |
The Omron E2E-X1R5F2 2M Proximity Sensor uses a cylindrical M8 shielded inductive sensing body with a 1.5 mm sensing distance and a 0 to 1.2 mm setting distance. It provides a DC 3-wire PNP output with NC operation through an oil-resistant PVC pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, paired with an iron 8 × 8 × 1 mm standard sensing object. Response frequency is 2 kHz, while control output is rated 200 mA max. A red operation indicator is provided, and load short-circuit protection, surge suppression, and reverse-polarity protection are specified for the electrical circuit.
Operating conditions for the E2E-X1R5F2 cover -25 to 70°C, while storage extends from -40 to 85°C without icing or condensation. IEC 60529 IP67 and an in-house oil-resistant rating are listed. Nickel-plated brass, PBT, zinc-plated iron, and PVC are specified among the construction materials. The compact M8 shielded format supports mounting near surrounding metal, while the 1.5 mm sensing distance is paired with PNP NC switching. Its 2 kHz response frequency suits relatively fast target movement, and the oil-resistant cable supports fixed machine wiring. For another compact M8 shielded sensor with a similar sensing format and connector-based NPN output, see E2E-X1R5C18-M3.
