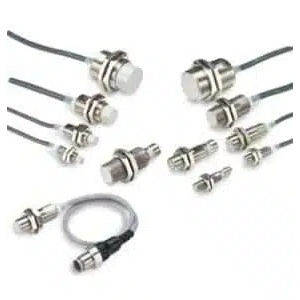

E2E-X10MF1 2M: 3 Wire PNP Proximity Sensor in Chennai
The Omron E2E-X10MF1 2M 3 Wire PNP Proximity Sensor has the following technical specifications:
- Sensor head diameter: M18
- Installation: Non-flush/un-shielded
- Sensing distance: 10 mm
- Connection method: Pre-wired models
- Cable specifications: PVC (oil-resistant)
- Switching: Normally Open (NO)
- Output configuration: PNP, DC 3-wire
- Response frequency: 0.2 KHz
- Power supply voltage: 12 to 24 VDC
Omron 3 Wire PNP Proximity Sensor E2E-X10MF1 2M Technical Specification:
| Sensor Head (Dia) | M18 |
| Installation | Non-Flush | Un-shielded |
| Sensing Distance | 10 mm |
| Connection Method | Pre-wired Models |
| Cable Specifications | PVC (oil-resistant) |
| Switching | NO |
| Output Configuration | PNP, DC 3 Wire |
| Differential travel | 10% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard sensing object | Iron, 30 × 30 × 1 mm |
| Response frequency | 0.2 KHz |
| Power supply voltage | 12 to 24 VDC ripple (p-p) 10% max. |
| Leakage current | 13 mA max |
| Indicator | Operation indicator (red) |
| Protection circuit | Load short-circuit protection, Surge suppressor, Reverse polarity protection |
| Ambient air temperature | Operating Storage: −40 to 85°C (with no icing or condensation) |
| Ambient humidity | Operating/storage: 35% to 95% (with no condensation) |
| Voltage influence | ±1% max. of sensing distance at a rated voltage in the rated voltage ±15% range |
| Degree of protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Material Case | Stainless steel (SUS303) |
| Material Sensing surface | PBT |
Looking for the Omron 3 Wire PNP Proximity Sensor E2E-X10MF1 2M in Chennai? You’re at the right place. This Inductive Proximity Sensor comes with an M18 head, is non-flush and unshielded, senses up to 10 mm, and has pre-wired models. It features oil-resistant PVC cable, Normally Open (NO) switching, PNP DC 3-wire output, a response frequency of 0.2 KHz, and works with 12 to 24 VDC power. For the best prices on this sensor, visit IndMALL Automation.
