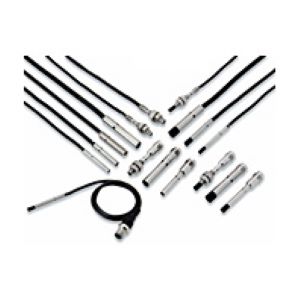

E2E-S05S12-WC-B2 2M - Omron Small-diameter Proximity Sensor
E2E-S05S12-WC-B2 2M is a compact Omron Small-diameter Proximity Sensor with M5 shielded housing, 1.2 mm sensing range, and high-speed 4 kHz response. Built with SUS303 stainless steel and IP67 protection, it offers oil resistance and stable detection in precision automation environments.
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | Proximity Sensor |
| Product | E2E-S05S12-WC-B2 2M |
Omron Small-diameter Proximity Sensor E2E-S05S12-WC-B2 2M Technical Specifications
| Specification | Value |
|---|---|
| Housing Shape | SUS or threaded |
| Size | M5 |
| Mounting type | Shielded |
| Sensing Distance | 1.2 mm ±10% |
| Setting Distance | 0 to 0.84 mm |
| Output configuration | DC 3-wire PNP |
| Operation Mode | NC |
| Connection Method | PVC Pre-wired 2M Cable |
| Cable specifications | PVC (oil-resistant) |
| Wire color / pin arrangement | Brown: +V Black: Output Blue: 0 V |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 4 × 4 × 1 mm |
| Response Frequency | 4 kHz |
| Power Supply Voltage | 10 to 30 VDC (including 10% ripple (p-p)) |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operation and storage: −25 to 70°C |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 100 mA max. 2 V max. |
| Indicators | Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output. |
| Materials | SUS303 (EN 1.4305), Heat-resistant ABS, SUS430 (EN 1.4016), SUS303 (EN 1.4305) , Polyvinyl chloride (PVC). |
| Weight | Approx. 35 g |
🛠️ Get Quotes Instantly from Omron Vendors
Omron, a trusted leader in industrial automation, is renowned for engineering reliable sensing solutions for precision manufacturing. The E2E-S05S12-WC-B2 2M exemplifies this quality, delivering stable and accurate detection in tight spaces. With its stainless steel construction and IP67-rated durability, it ensures consistent performance in demanding industrial environments.
The Omron Small-diameter Proximity Sensor E2E S05S12 WC B2 2M features a shielded M5 housing, a 1.2 mm sensing distance, and high-frequency response of 4 kHz for fast detection. Operating on 10–30 VDC, it supports a DC 3-wire PNP NC configuration with oil-resistant PVC pre-wired 2M cable. Safety is enhanced with reverse polarity, surge suppression, and short-circuit protection. For full technical details, refer to the official Omron product page.
Designed for automation systems requiring high precision, the Omron Small-diameter Proximity Sensor is ideal for robotics, miniature part positioning, and electronic assembly lines. Its compact profile fits seamlessly into machinery with limited mounting space, ensuring efficiency without compromising accuracy. Engineers across industries trust the E2E-S05S12-WC-B2 2M for consistent small-object detection.
