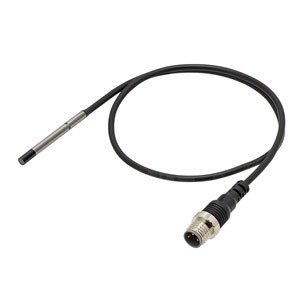

Omron E2E-S05S12-CJ-B1 0.3M Small-diameter Proximity Sensor
Omron E2E-S05S12-CJ-B1 0.3M is an M5 shielded inductive proximity sensor with a compact 1.2 mm sensing distance and a 0 to 0.84 mm setting distance. It provides a DC 3-wire PNP output with NO operation through a 3-pin M8 pre-wired connector and an oil-resistant PVC cable. The sensor operates from 10 to 30 VDC and detects ferrous metal using an iron 4 × 4 × 1 mm standard sensing object. Response frequency is 4 kHz, while control output is rated 100 mA max. with a 2 V max. voltage drop. The E2E-S05S12-CJ-B1 0.3M belongs to M5 proximity sensors from Omron industrial sensor technology.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-S05S12-CJ-B1 0.3M |
Omron E2E-S05S12-CJ-B1 0.3M Small-diameter Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | SUS or threaded |
| Size | M5 |
| Mounting type | Shielded |
| Sensing Distance | 1.2 mm |
| Setting Distance | 0 to 0.84 mm |
| Output configuration | DC 3-wire PNP |
| Operation Mode | NO |
| Connection Method | M8 Pre-wired Connector, 3-pin |
| Cable specifications | PVC (oil-resistant) |
| Wire color / pin arrangement | 1: +V, 3: 0 V, 4: Control output |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 4 × 4 × 1 mm |
| Response Frequency | 4 kHz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operation and storage: −25 to 70°C |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 100 mA max. 2 V max. |
| Indicators | Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output. |
| Materials | SUS303 (EN 1.4305), Heat-resistant ABS, SUS430 (EN 1.4016), SUS303 (EN 1.4305) , Polyvinyl chloride (PVC). |
| Weight | Approx. 20 g |
The Omron E2E-S05S12-CJ-B1 0.3M Small-diameter Proximity Sensor uses an M5 shielded inductive sensing body with a 1.2 mm sensing distance and a 0 to 0.84 mm setting distance. It provides a DC 3-wire PNP output with NO operation through a 3-pin M8 pre-wired connector and an oil-resistant PVC cable, operating from 10 to 30 VDC. Ferrous metal is the specified detectable object, with an iron 4 × 4 × 1 mm standard sensing object. Response frequency is 4 kHz, while control output is rated 100 mA max. with a 2 V max. voltage drop. A yellow operation indicator and multiple electrical protection functions are specified.
Operating and storage conditions for the E2E-S05S12-CJ-B1 cover -25 to 70°C. IEC 60529 IP67 and an in-house oil-resistant rating are specified for environmental protection. SUS303, SUS430, heat-resistant ABS, and PVC are listed among the construction materials. The M5 shielded sensing arrangement provides compact threaded mounting with the stated 1.2 mm detection range, while the prewired M8 connection combines a short cable section with detachable connector wiring. Output reverse-polarity, power-source reverse-polarity, surge, and load short-circuit protection are specified. For another E2E model with an M30 body, 10 mm sensing range, and DC 2-wire configuration, see E2E-X10D1-M1TGJ-U.
