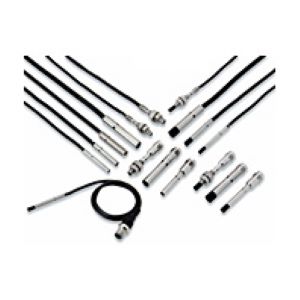

Omron E2E-S04N02-CJ-C1 0.3M Small-diameter Proximity Sensor
The Omron E2E-S04N02-CJ-C1 0.3M Small-diameter Proximity Sensor offers Inductive, M4, Unshielded, 2 mm Sensing distance, DC 3-wire NPN NO, PVC Cable, M8 Pre-wired Connector, 3-pin, 10 to 30 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2E Series.
| Brand | Omron |
| Product Type | Proximity Sensor |
| Model Number | E2E-S04N02-CJ-C1 0.3M |
Omron E2E-S04N02-CJ-C1 0.3M Small-diameter Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Housing Shape | SUS or threaded |
| Size | M4 |
| Mounting type | Unshielded |
| Sensing Distance | 2 mm |
| Setting Distance | 0 to 1.4 mm |
| Output configuration | DC 3-wire NPN |
| Operation Mode | NO |
| Connection Method | M8 Pre-wired Connector, 3-pin |
| Cable specifications | PVC (oil-resistant) |
| Wire color / pin arrangement | 1: +V, 3: 0 V, 4: Control output |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 6 Γ 6 Γ 1 mm |
| Response Frequency | 3.5 kHz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operation and storage: β25 to 70Β°C |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 50 mA max. 2 V max. |
| Indicators | Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output. |
| Materials | SUS303 (EN 1.4305), Heat-resistant ABS, No, No, Polyvinyl chloride (PVC) |
| Weight | Approx. 20 g |
The Omron E2E-S04N02-CJ-C1 0.3M is often compared with other models in the E2E Small-diameter Proximity Sensor group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron E2E-X10MB212 2M (M12, 10 mm sensing, DC 3-Wire PNP, NC, 2 M Cable), Omron E2E-X3D1-M1 (M12, 3 mm sensing, DC 2-wire, M12 Connector), and Omron E2E-C04N03-WC-C1 5M (4 dia, 3 mm sensing) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The E2E-S04N02-CJ-C1 0.3M integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Proximity Sensor.
