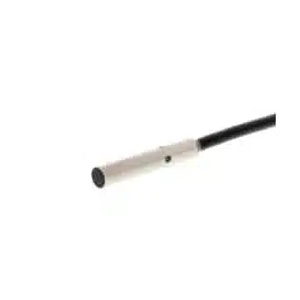

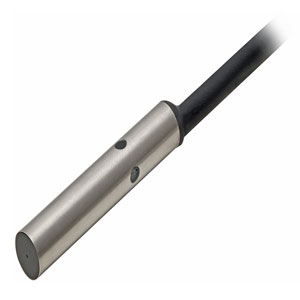

Omron E2E-C06S02-WC-B1 2M Proximity Sensor
Omron E2E-C06S02-WC-B1 2M is a 6.5 mm diameter small-diameter inductive proximity sensor with shielded mounting, a 2 mm sensing distance, and a 0 to 1.4 mm setting distance. It uses a PNP output with NO operation and a pre-wired 2 m oil-resistant PVC cable. Power-supply voltage is 10 to 30 VDC. Ferrous metal is the listed detectable object, with an iron 6.5 × 6.5 × 1 mm standard sensing object. The model provides a 3 kHz response frequency, 10 mA max. current consumption, and 15% max. differential travel. A yellow output indicator and electrical protection circuits are specified. The E2E-C06S02-WC-B1 belongs to the Proximity sensor family from Omron sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-C06S02-WC-B1 2M |
Omron E2E-C06S02-WC-B1 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Small-diameter |
| Size | 6.5 dia. |
| Mounting | Shielded |
| Sensing Distance | 2 mm |
| Setting Distance | 0 to 1.4 mm |
| Output Configuration | PNP |
| Operation Mode | NO |
| Connection | Pre Wired, Length 2M |
| Cable Specifications | PVC (oil-resistant) |
| Power Supply Voltage | 10 to 30 VDC |
| Standard Target | Iron, 6.5 × 6.5 × 1 mm |
| Differential Travel | 15% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Response Frequency | 3 kHz |
| Current Consumption | 10 mA max |
| Indicator | Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output. |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operation and storage: −25 to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operation and storage: 35% to 95% (with no condensation) |
| Insulation Resistance | ±15% max. of sensing distance at 23°C within temperature range of −25 to 70°C |
| Dielectric Strength | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | Destruction: 500 m/s2 10 times each in X, Y, and Z directions |
| Voltage Influence | ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Degree Of Protection | IP67 |
| Weight | Approx. 55 g |
The Omron E2E-C06S02-WC-B1 2M Proximity Sensor combines a 6.5 mm diameter small-diameter body with shielded inductive sensing, a 2 mm sensing distance, and a 0 to 1.4 mm setting distance. Its output is PNP with NO operation, and the sensor is supplied with a pre-wired 2 m oil-resistant PVC cable. Power supply is 10 to 30 VDC, with 10 mA max. current consumption. Ferrous metal is listed as the detectable object, using an iron 6.5 × 6.5 × 1 mm standard sensing object. Differential travel is 15% max. of sensing distance and response frequency is 3 kHz. A yellow indicator lights during output, with reverse-polarity, surge, and load short-circuit protection specified.
The operating and storage temperature range is -25 to 70°C without icing or condensation, while operating and storage humidity is 35% to 95% without condensation. Temperature influence is ±15% max. of sensing distance at 23°C across the specified temperature range. Insulation resistance is 50 MΩ min. at 500 VDC and dielectric strength is 500 VAC for 1 minute. Voltage influence is ±2.5% max. of sensing distance within rated voltage ±15%, and protection is IP67. For a smaller 3 mm diameter version with 0.8 mm sensing distance, 5 kHz response frequency, and the same output and cable arrangement, see E2E-C03SR8-WC-B1 2M.
