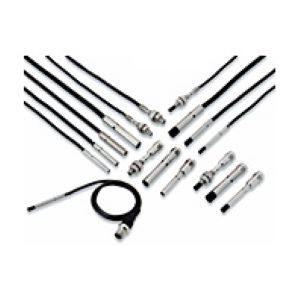

Omron E2E-C04N03-WC-B2 2M Small-diameter Proximity Sensor
The Omron E2E-C04N03-WC-B2 2M Small-diameter Proximity Sensor offers Inductive, 4 dia, Unshielded, 3 mm Sensing distance, DC 3-wire PNP NC, PVC Pre-wire 2M Cable, 10 to 30 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2E Series.
| Brand | Omron |
| Product Type | Proximity Sensor |
| Model Number | E2E-C04N03-WC-B2 2M |
Omron E2E-C04N03-WC-B2 2M Small-diameter Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Housing Shape | Cylindrical |
| Size | 4 dia. |
| Mounting type | Unshielded |
| Sensing Distance | 3 mm |
| Setting Distance | 0 to 2.1 mm |
| Output configuration | DC 3-wire PNP |
| Operation Mode | NC |
| Connection Method | Pre-wire 2M Cable |
| Cable specifications | PVC (oil-resistant) |
| Wire color / pin arrangement | 1: +V, 3: 0 V, 4: Control output |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 9 Γ 9 Γ 1 mm |
| Response Frequency | 2 kHz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operation and storage: β25 to 70Β°C |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 100 mA max. 2 V max. |
| Indicators | Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output. |
| Materials | SUS303 (EN 1.4305) , Heat-resistant ABS, No, No, Polyvinyl chloride (PVC) |
| Weight | Approx. 20 g |
The Omron E2E-C04N03-WC-B2 2M is often compared with other models in the E2E Small-diameter Proximity Sensor group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron E2E-C03N02-WC-B2 5M (3 dia, 2 mm sensing), Omron E2E-X10B1T30-M1 (M30, 10 mm sensing, DC 3-Wire PNP, NO, M12 Connector), and Omron E2E-X14B2L18-M1TJ 0.3M (M18, 14 mm sensing, DC 3-Wire PNP, M12 Smartclick Connector 0.3 M Cable) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The E2E-C04N03-WC-B2 2M integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Proximity Sensor.
