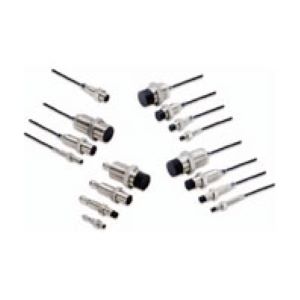

Omron E2B-M30LS10-M1-B1 Proximity Sensor
Omron E2B-M30LS10-M1-B1 is an M30 shielded inductive proximity sensor with a 10 mm sensing distance and long-body construction. It uses a DC 3-wire PNP output with NO operation through an M12 connector and operates from 10 to 30 VDC. Ferrous metal is specified as the detectable object, with a 30 × 30 × 1 mm standard sensing object. Response frequency is 400 Hz, current consumption is 10 mA max., and differential travel is 10% max. of sensing distance. A yellow operation indicator and reverse-polarity, surge, short-circuit, and IP67 protection are specified. The E2B-M30LS10-M1-B1 appears under shielded inductive sensors from Omron sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2B-M30LS10-M1-B1 |
Omron E2B-M30LS10-M1-B1 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M30 |
| Mounting | Shielded |
| Sensing Distance | 10 mm |
| Body Length | Long Body |
| Output | DC 3-wire |
| Output Configuration | PNP |
| Operation Mode | NO |
| Connection | M12 Connector |
| Power Supply Voltage | 10 to 30 VDC |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard Sensing Object | 30 × 30 × 1 mm |
| Response Frequency | 400 Hz |
| Current Consumption | 10 mA max |
| Indicator | Operation indicator (Yellow LED) |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient Temperature Range | Operation and storage : -25 to 70ºC (with no icing or condensation) |
| Ambient Humidity Range | Operation and Storage: 35 to 95% |
| Voltage Influence | ±1% max. of sensing distance in 24 VDC ±15% |
| Standard And Listings | (1) IP67 (IEC60529) (2) EMC (EN60947-5-2) |
| Material Case | Brass-nickel plated |
| Material Sensing Surface | PBT |
| Material Cable | Standard cable is 4 mm dia. PVC. |
| Material Clamping Nut | Brass-nickel plated |
The Omron E2B-M30LS10-M1-B1 Proximity Sensor combines an M30 shielded inductive sensing body with a 10 mm sensing distance and long-body construction. It uses a DC 3-wire PNP output with NO operation through an M12 connector and operates from 10 to 30 VDC. Ferrous metal is specified as the detectable object, with a 30 × 30 × 1 mm standard sensing object. Response frequency is 400 Hz, current consumption is 10 mA max., and differential travel is 10% max. of sensing distance. A yellow operation indicator is provided. Output reverse-polarity protection, power-source reverse-polarity protection, surge suppression, and short-circuit protection are specified.
Environmental specifications for the E2B-M30LS10-M1-B1 give -25 to 70°C for operation and storage without icing or condensation, with humidity from 35% to 95%. Voltage influence is ±1% max. of sensing distance at 24 VDC ±15%. IEC 60529 IP67 and EMC according to EN60947-5-2 are listed. Nickel-plated brass is used for the case and clamping nut, PBT for the sensing surface, and PVC for the standard cable specification. The stated 10 mm sensing distance decreases with non-ferrous metal. For another PNP NO E2B model with an M30 body and a pre-wired 2 m cable using the same 10 mm shielded sensing distance, see E2B-M30LS10-WP-B1 2M.
