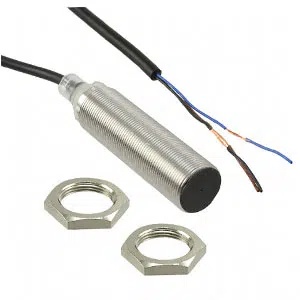

Omron E2B-M18LS08-WP-B1 2M Proximity Sensor
The Omron E2B-M18LS08-WP-B1 2M Proximity Sensor offers Inductive, M18, Shielded, 8 mm Sensing distance, Long body, PNP NO Output, Pre Wired Cable Length 2M, 10 to 30 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2B Series.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2B-M18LS08-WP-B1 2M |
Omron E2B-M18LS08-WP-B1 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M18 |
| Mounting | Shielded |
| Sensing Distance | 8 mm |
| Body Length | Long body |
| Output Configuration | PNP |
| Operation Mode | NO |
| Connection | Pre Wired Cable Length 2M |
| Power Supply Voltage | 10 to 30 VDC |
| Body Material | Brass |
| Standard Target | 30 Γ 30 Γ 1 mm |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Response Frequency | 400 Hz |
| Current Consumption | 10 mA max |
| Indicator | Operation indicator (Yellow LED) |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient Temperature Range | Operation and storage : -25 to 70ΒΊC (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35% to 95%, Storage: 35% to 95% |
| Insulation Resistance | Β±10% max. of sensing distance at 23ΒΊC within temperature range of -10 to 55ΒΊC Β±15% max. of sensing distance at 23ΒΊC within temperature range of -25 to 70ΒΊC |
| Dielectric Strength | 50 MΞ© min. (at 500 VDC) between current carry parts and case |
| Vibration Resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions |
| Shock Resistance | 1,000 m/s2, 10 times each in X, Y and Z directions |
| Voltage Influence | Β±1% max. of sensing distance in 24 V Β±15% |
| Degree Of Protection | IP67 |
| Weight | Approx. 110 g |
The Omron E2B-M18LS08-WP-B1 2M is often compared with other models in the E2B Proximity Sensor group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron E2B-M12KS04-WP-B1 2M (M12, 4 mm Sensing Distance, PNP, NO, Pre Wired Cable Length 2M), Omron E2B-M30KS15-M1-B1 (M30, 15 mm Sensing Distance, PNP, NO, M12 Connector), and Omron E2B-M12LN08-M1-B1 (M12, 8 mm Sensing Distance, PNP, NO, M12 connector) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The E2B-M18LS08-WP-B1 2M integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Proximity Sensor.
