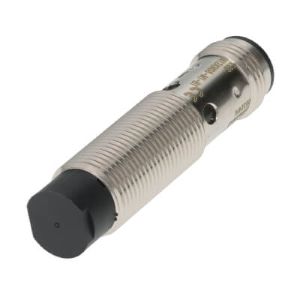

Omron E2B-M12KN08-M1-B1 Proximity Sensor
Omron E2B-M12KN08-M1-B1 is a cylindrical M12 unshielded inductive proximity sensor with an 8 mm sensing distance, a 0 to 6.4 mm setting distance, and short-body construction. It uses a DC 3-wire PNP output with NO operation through an M12 connector and operates from 10 to 30 VDC. Ferrous metal is the specified detectable object, with a 24 × 24 × 1 mm standard sensing object. Response frequency is 800 Hz, control output is rated 200 mA max. at 30 VDC max., and voltage drop is 2 V max. A yellow operation LED and IP67 protection are specified. The E2B-M12KN08-M1-B1 is listed among M12 proximity sensors from Omron industrial sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2B-M12KN08-M1-B1 |
Omron E2B-M12KN08-M1-B1 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | Cylindrical |
| Size | M12 |
| Mounting type | Unshielded |
| Sensing Distance | 8 mm |
| Setting Distance | 0 to 6.4 mm |
| Output configuration | DC, 3-wire, PNP |
| Operation Mode | NO |
| Body Length | Short body |
| Connection Method | M12 Connector |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | 24 × 24 × 1 mm |
| Response Frequency | 800 Hz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient Temperature Range | Operation and storage : -25 to 70ºC |
| Degree of Protection | IP67(IEC60529), EMC (EN60947-5-2) |
| Control Output | 200 mA max. (30 VDC max.), 2 V max. |
| Indicators | Operation indicator (Yellow LED) |
| Materials | Brass-nickel plated, PBT, Standard cable is 4 mm dia. PVC, Brass-nickel plated, Zinc-plated iron. |
| Weight | Approx. 35 g |
The Omron E2B-M12KN08-M1-B1 Proximity Sensor uses a cylindrical M12 unshielded inductive sensing body with an 8 mm sensing distance, a 0 to 6.4 mm setting distance, and short-body construction. It provides a DC 3-wire PNP output with NO operation through an M12 connector and operates from 10 to 30 VDC. Ferrous metal is the specified detectable object, with a 24 × 24 × 1 mm standard sensing object. Response frequency is 800 Hz, control output is rated 200 mA max. at 30 VDC max., and voltage drop is 2 V max. A yellow operation indicator is provided, together with output reverse-polarity, power-source reverse-polarity, surge suppression, and short-circuit protection.
Operating and storage conditions for the E2B-M12KN08-M1-B1 are -25 to 70°C. IP67 according to IEC 60529 and EMC according to EN60947-5-2 are listed. Nickel-plated brass, PBT, zinc-plated iron, and the standard 4 mm diameter PVC cable specification are included among the construction details. The short M12 body combines unshielded 8 mm sensing with PNP NO switching and connector termination. Ferrous metal is the stated target, while the 800 Hz response frequency remains part of the selection data. For another M12 E2B sensor with a 2 mm sensing distance, PNP NC output, and M12 connector, see E2B-M12KS02-M1-B2.
