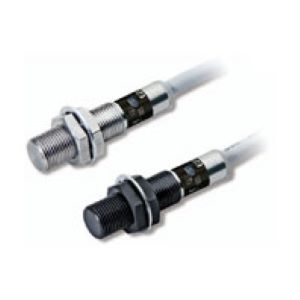

Omron E2EF-QX7D1-M1TGJ 0.3M Proximity Sensor
Omron E2EF-QX7D1-M1TGJ 0.3M is an M18 shielded inductive proximity sensor with a 7 mm sensing distance and a 0 to 4.9 mm setting distance. It provides a DC 2-wire NO output through an M12 pre-wired Smartclick connector with a 0.3 m cable and operates from 10 to 30 VDC. Ferrous metal is the specified detectable object, with an iron 30 × 30 × 1 mm standard sensing object. Response frequency is 100 Hz and control output is rated from 3 to 100 mA. Red and green LEDs indicate operation and setting status, while surge suppression and load short-circuit protection are specified. The E2EF-QX7D1-M1TGJ 0.3M is included among M18 proximity sensors from Omron sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EF-QX7D1-M1TGJ 0.3M |
Omron E2EF-QX7D1-M1TGJ 0.3M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M18 |
| Mounting type | Shielded |
| Sensing Distance | 7mm |
| Setting Distance | 0 to 4.9mm |
| Output configuration | DC 2-Wire |
| Operation Mode | NO |
| Connection Method | M12 Pre-wired Smartclick Connector 0.3 M Cable |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 30 × 30 × 1 mm |
| Response Frequency | 100Hz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operating : −10 to 70°C, Storage : −25 to 70°C (with no icing or condensation) |
| Degree of Protection | IEC 60529 IP67 |
| Control Output | 3 to 100 mA |
| Indicators | Operation indicator (red LED), Setting indicator (green LED) |
| Materials | Stainless steel (SUS303), Zinc-plated iron, PVC (flame retardant). |
| Weight | Approx. 110 g |
The Omron E2EF-QX7D1-M1TGJ 0.3M Proximity Sensor uses an M18 shielded inductive sensing body with a 7 mm sensing distance and a 0 to 4.9 mm setting distance. It provides a DC 2-wire NO output through an M12 pre-wired Smartclick connector with a 0.3 m cable and operates from 10 to 30 VDC. Ferrous metal is the specified detectable object, with an iron 30 × 30 × 1 mm standard sensing object. Response frequency is 100 Hz and control output is rated from 3 to 100 mA. Red and green LEDs indicate operation and setting status, while surge suppression and load short-circuit protection are specified. SUS303 stainless steel is listed for the sensor body.
Operating conditions for the E2EF-QX7D1-M1TGJ are -10 to 70°C, while storage extends from -25 to 70°C without icing or condensation. IEC 60529 IP67 is the specified protection level. Zinc-plated iron and flame-retardant PVC are also listed among the construction materials. The shielded M18 format pairs a 7 mm sensing range with DC 2-wire NO switching and the 0.3 m Smartclick connection. Ferrous metal remains the stated detection target. For another E2EF model with the same M18 body, 7 mm sensing distance, and Smartclick connector in the supplied comparison set, see E2EF-X7D1-M1TGJ 0.3M.
