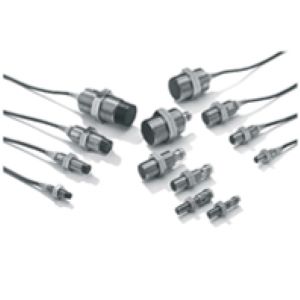

Omron E2A-S08LS02-M3-B2 Proximity Sensor
The Omron E2A-S08LS02-M3-B2 Proximity Sensor offers Cylindrical, Inductive, M8, Shielded, 2 mm Sensing distance, Long body, DC, 3-wire, PNP NC, M8 Connector (4-pin), 12 to 24 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2B Series.
| Brand | Omron |
| Product Type | Proximity Sensor |
| Model Number | E2A-S08LS02-M3-B2 |
Omron E2A-S08LS02-M3-B2 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Housing Shape | Cylindrical |
| Size | M8 |
| Mounting type | Shielded |
| Sensing Distance | 2 mm |
| Setting Distance | 0 to 1.6 mm |
| Output configuration | DC, 3-wire, PNP |
| Operation Mode | NC |
| Body Length | Long body |
| Connection Method | M8 Connector (4-pin) |
| Response Frequency | 1,500 Hz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient Temperature Range | Operating: β40Β°C to 70Β°C, Storage: β40Β°C to 85Β°C |
| Degree of Protection | IP67 after IEC 60529, IP69k after DIN 40050, EMC after EN60947-5-2 |
| Control Output | 200 mA max. (32 VDC max.), 2 V max. |
| Indicators | Operation indicator (Yellow LED) |
| Materials | Stainless steel or brass-nickel plated, PBT, PVC, Brass-nickel plated |
| Weight | Approx. 15 g |
The Omron E2A-S08LS02-M3-B2 is often compared with other models in the E2A Proximity Sensor group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron E2A-M12LS04-M5-C1 (M12, 4 mm sensing, DC, 3-wire, NPN, NO, M8 connector (3-pin)), Omron E2A-S08LN04-M1-B2 (4 mm sensing, M12 Connector), and Omron E2A-M30KS15-M3-B1 (M30, 15 mm sensing, NO) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The E2A-S08LS02-M3-B2 integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Cylindrical Proximity Sensor.
