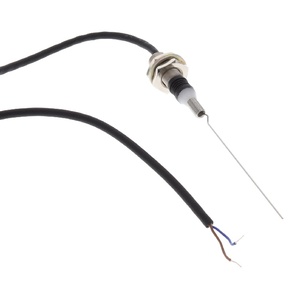

Omron D5B-8515 Limit Switch
The Omron D5B-8515 Limit Switch offers Wobble stick actuator, 5 m cable length, M8 type. Manufactured by Omron under the Omron Limit Switch category, this model belongs to the D4B Series.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D5B-8515 |
Omron D5B-8515 Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Type | M8 |
| Shape Structure | Touch switches |
| Electrical Ratings | 1 mA at 5 VDC to 30 mA at 30 VDC |
| Load | Resistive load |
| Actuator Detail | Short spring |
| Repeat Accuracy | Short spring |
| Material Housing | Metal |
| Ambient Temperature | Operating: β10Β°C to 70Β°C (with no icing) |
| Ambient Humidity | Operating: 95% max. |
| Shock Resistance | Mechanical: 1,000 m/s2 min. Malfunction: 300 m/s2 min. |
| Degree Of Protection | IP67 |
| Cable Specifications | Oil-resistant cable |
| Insulation Resistance | 100 M⦠min. at 250 VDC between each terminal and ground |
| Cable Length | 5 m |
| Dielectric Strength | 250 VAC, 50/60 Hz for 1 min between terminals of same polarity (TTP) 1,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and ground (600 VAC for M5 model) |
| Actuator | Wobble stick |
| Vibration Resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Operating Mechanism | Slow action |
| Operating Speed | 5 to 500 mm/s |
| Operating Frequency | Mechanical: 120 operations/min. Electrical: 60 operations/min |
| Contact Resistance | 3.1 Ξ© max. |
The Omron D5B-8515 is a compact touch switch designed for low-voltage, low-current detection tasks in industrial systems. It features a wobble stick actuator with a short spring and slow-action contact structure, allowing smooth multi-directional operation. The switch supports resistive microloads from 1 mA at 5 VDC up to 30 mA at 30 VDC, ideal for signal-level applications.
This model comes pre-wired with a 5-meter oil-resistant cable and includes an M8 conduit for secure installation. It operates at speeds from 5 to 500 mm/s and can handle up to 60 electrical operations per minute. The housing is made from durable metal and offers IP67 protection, ensuring resistance to dust, water, and oil exposure.
With high insulation (100 M⦠min.), low contact resistance (3.1 ⦠max.), and excellent shock and vibration tolerance, the D5B-8515 is suitable for compact machinery, automation equipment, and safety detection systems.
