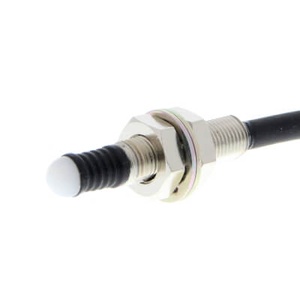

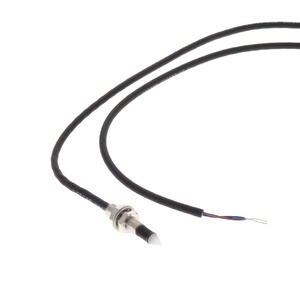

Omron D5B-5013 Limit Switch
The Omron D5B-5013 Limit Switch offers Hemispheric actuator, 3 m cable length, M5 type. Manufactured by Omron under the Omron Limit Switch category, this model belongs to the D4B Series.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D5B-5013 |
Omron D5B-5013 Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Type | M5 |
| Shape Structure | Touch switches |
| Electrical Ratings | 1 mA at 5 VDC to 30 mA at 30 VDC |
| Load | Resistive load |
| Actuator Detail | Plunger |
| Repeat Accuracy | Plunger |
| Material Housing | Metal |
| Ambient Temperature | Operating: –10°C to 70°C (with no icing) |
| Ambient Humidity | Operating: 95% max. |
| Shock Resistance | Mechanical: 1,000 m/s2 min. Malfunction: 300 m/s2 min. |
| Degree Of Protection | IP67 |
| Cable Specifications | Oil-resistant cable |
| Insulation Resistance | 100 MΩ min. at 250 VDC between each terminal and ground |
| Cable Length | 3 m |
| Dielectric Strength | 250 VAC, 50/60 Hz for 1 min between terminals of same polarity (TTP) 1,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and ground (600 VAC for M5 model) |
| Actuator | Hemispheric |
| Vibration Resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Operating Mechanism | Slow action |
| Operating Speed | 5 to 500 mm/s |
| Operating Frequency | Mechanical: 120 operations/min. Electrical: 60 operations/min |
| Contact Resistance | 1.9 Ω max |
The Omron D5B-5013 is a miniature touch-activated limit switch designed for precise position sensing in compact industrial devices. Featuring a robust M5 metal body and hemispheric actuator, it enables smooth tactile feedback and high repeat accuracy. The slow-action mechanism ensures reliable detection even at low operating speeds (5 to 500 mm/s), with mechanical durability up to 120 operations/minute. This switch is ideal for detecting light contact or presence in precision systems where space is limited.
It supports microload switching from 1 mA at 5 VDC to 30 mA at 30 VDC and includes a 3-meter prewired oil-resistant cable for flexible installations. The unit offers IP67 protection, withstanding dust, water, and harsh operating conditions from –10°C to 70°C. Built for reliability, the D5B-5013 features high insulation resistance (100 MΩ min), low contact resistance (1.9 Ω max), and excellent vibration/shock resistance, making it suitable for sensors, robotics, and detection in tight spaces.
