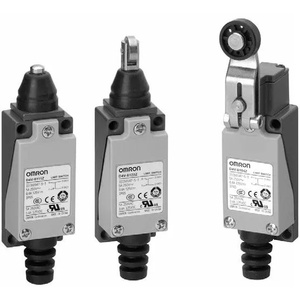

Omron D4V-8104Z Limit Switch
The Omron D4V-8104Z Limit Switch offers Roller lever actuator, cable length, rating. Manufactured by Omron under the Omron Limit Switch category, this model belongs to the D4V Series.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D4V-8104Z |
Omron D4V-8104Z Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Ambient Temperature | β20Β°C to 60Β°C (with no icing) |
| Ambient Humidity | 90% max |
| Shock Resistance | Destruction: 1,000 m/s2 (free position) min. Malfunction: 300 m/s2 (operation limit position) min. |
| Degree Of Protection | IP65 |
| Durability | Mechanical: 10,000,000 operations min. Electrical: 300,000 operations min. (5 A at 250 VAC, resistive load) |
| Insulation Resistance | 100 M⦠min. (at 500 VDC) |
| Dielectric Strength | Between terminals of the same polarity: 1,000 VAC, 50/60 Hz for 1 min Between currentcarrying metal parts and ground: 1,500 VAC, 50/60 Hz for 1 min |
| Actuator | Roller lever |
| Vibration Resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Operating Speed | 5 mm to 0.5 m/s |
| Operating Frequency | Mechanical: 120 operations/min Electrical: 30 operations/min |
| Contact Resistance | 25 m⦠max. (initial value) |
| Rated Insulation Voltage Ui | 250 V |
| Weight | Approx. 130 to 190 g |
The Omron D4V-8104Z is a high-durability small limit switch with a roller lever actuator, ideal for position detection in automated equipment. Its compact form factor and mechanical strength support long-term reliability, rated for up to 10 million mechanical operations and 300,000 electrical operations at 5 A, 250 VAC resistive load. The switch operates within speeds of 5 mm/s to 0.5 m/s and supports a maximum of 120 mechanical and 30 electrical operations per minute. Built to endure harsh industrial environments, it offers IP65 protection against dust and water and withstands vibrations up to 55 Hz and shocks up to 1,000 m/s². The internal contacts have an initial resistance of 25 m⦠and excellent insulation resistance of 100 M⦠at 500 VDC. Its robust housing, high-precision switching, and strong environmental resistance make the D4V-8104Z suitable for conveyors, presses, and robotic arms requiring consistent limit feedback.
