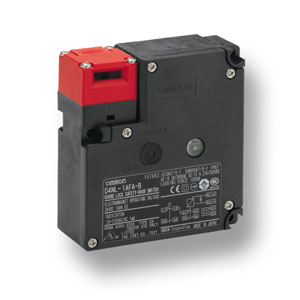

Omron D4NL-2GFG-B Safety Door Switch
Omron D4NL-2GFG-B is a 24 VDC guard lock safety door switch designed for controlled access through protective machine doors. It uses a solenoid lock with mechanical release, while the 3NC + 1NC/1NO contact configuration provides multiple switching paths for guard and lock status monitoring. A G1/2 conduit provides the wiring connection, and a Type 2 low-level coded interlock supports mechanical guard-position detection. IP67 protection suits industrial machine safety installations, with 60 N minimum direct opening force and 10 mm minimum travel. The D4NL-2GFG-B belongs to the D4NL series within the guard lock safety switch range from Omron industrial safety products, supporting machine guards, protective access and safety interlocking.
| Brand | Omron |
| Product Type | Safety Door Switch |
| Model Number | D4NL-2GFG-B |
Omron D4NL-2GFG-B Safety Door Switch - Technical Specifications
| Specification | Value |
|---|---|
| Solenoid voltage/ indicator | Solenoid: 24 VDC, Orange LED: 10 to 115 VAC/VDC |
| Lock and release types | Solenoid lock Mechanical release |
| Contact configuration | 3NC+1NC/1NO |
| Conduit outlet/Connector | G1/2 |
| Interlock type | Type 2 |
| Coding level | Low level coded |
| Degree of protection | IP67 |
| Operating speed | 0.05 to 0.5 m/s |
| Direct opening force | 60 N min |
| Direct opening travel | 10 mm min |
| Contact resistance | 25 mΩ max. |
| Rated insulation voltage (Ui) | 300 V |
| Rated frequency | 50/60 Hz |
| Insulation resistance | 100 MΩ min. |
| Contact gap | 2 × 2 mm min |
| Vibration resistance | Malfunction 10 to 55 Hz, 0.75 mm single amplitude |
| Shock resistance | Destruction 1,000 m/s2 min. Malfunction 100 m/s2 min. |
| Ambient operating temperature | −10 to 55°C |
| Ambient operating humidity | 95% max |
| Weight | Approx. 370 g |
The Omron D4NL-2GFG-B Guard Lock Safety Door Switch uses a 24 VDC solenoid lock with mechanical release to control access through protective machine doors. Its 3NC + 1NC/1NO contact configuration provides multiple switching paths for monitoring guard and lock conditions within the machine safety circuit. A G1/2 conduit provides the wiring connection, while the Type 2 low-level coded interlock supports mechanical guard-position detection. IP67 enclosure protection supports industrial machine safety installations.
The direct opening mechanism provides 60 N minimum force with 10 mm minimum travel, while operating speed ranges from 0.05 to 0.5 m/s. An orange LED supports 10 to 115 VAC/VDC indication for visible status information. The 3NC + 1NC/1NO contact arrangement is an important differentiator because it provides the model-specific switching structure within the D4NL range. Combined with solenoid locking, mechanical release and G1/2 wiring, it establishes clear relationships with machine guards, protective access control, guard lock safety switches and safety circuit monitoring. These entities provide useful topical relevance without adding low-value technical data merely to increase word count. Lock method and contact arrangement should therefore remain central when comparing related models. For another G1/2 D4NL model using solenoid locking with mechanical release but a 2NC + 1NC/1NO contact configuration, the D4NL-2CFG-B provides a closely related alternative.
