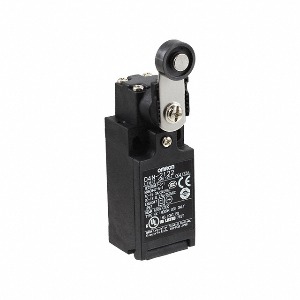

Omron D4N-2B32 Limit Switch
The Omron D4N-2B32 Limit Switch offers Roller plunger actuator, 2NC Contact form. Manufactured by Omron under the Omron Limit Switch category, this model belongs to the D4N Series.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D4N-2B32 |
Omron D4N-2B32 Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Contact Form | 2NC |
| Shock Resistance | Destruction 1,000 m/s2 min. Malfunction 300 m/s2 min. |
| Degree Of Protection | IP67 |
| Insulation Resistance | 100 MΞ© min. |
| Actuator | Roller plunger |
| Vibration Resistance | Malfunction 10 to 55 Hz, 0.75 mm single amplitude |
| Operating Mechanism | Slow-action |
| Conduit Size Conduit Openings | 1-conduit,G1/2 |
| Operating Speed | 1 to 500 mm/s |
| Operating Frequency | 30 operations/minute max. |
| Contact Resistance | 25 mΞ© max. |
| Rated Insulation Voltage Ui | 300 V |
| Rated Frequency | 50/60 Hz |
| Ambient Operating Temperature | β30 to 70Β°C (with no icing) |
| Ambient Operating Humidity | 95% max |
| Weight | Approx. 82 g (D4N-1120); Approx. 99 g (D4N-6120) |
