Omron D4C-1560 Limit Switch

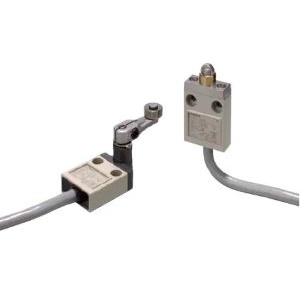

Omron D4C-1560 is a D4C Series limit switch with a center roller lever for repeated machine position and travel detection. The centered roller provides rolling mechanical contact with moving targets that sweep across the actuator, while the lever format allows actuation without a direct head-on push. This model supports standard loads rated at 5 A at 250 VAC and 4 A at 30 VDC. A 5 m VCTF cable provides additional routing distance between the switch and its connection point. The D4C-1560 belongs to the D4C Series within the center roller lever switch range from Omron automation products for machine travel and position sensing where a centered lever actuator and 5 m cable are required.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D4C-1560 |
Omron D4C-1560 Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Electrical Ratings | 5 A at 250 VAC, 4 A at 30 VDC |
| Load | Standard load |
| Cable Specifications | VCTF cable |
| Cable Length | 5 m |
| Actuator | Center roller lever |
The Omron D4C-1560 Limit Switch uses a center roller lever for machine position and travel detection and is supplied with a 5 m VCTF cable. The centered roller provides rolling mechanical contact with moving targets that sweep across the actuator, distinguishing this configuration from direct plunger and roller-plunger versions. This model supports standard loads rated at 5 A at 250 VAC and 4 A at 30 VDC. The 5 m prewired cable provides additional routing distance between the sensing point and the electrical connection, which is the main cable-related distinction from the 3 m center roller lever version.
The key selection points for the D4C-1560 are the center roller lever actuator, 5 m VCTF cable, and stated AC/DC standard-load ratings. The lever arrangement is suited to a target that passes across the roller, while the longer cable can be selected when the control wiring is positioned farther from the switch. The supplied row does not list temperature, IP rating, durability, shock, or contact-resistance values, so those specifications are not added here. This keeps the content limited to the model information provided. For a related D4C center roller lever model with the same load ratings but a shorter 3 m VCTF cable, see the D4C-1460 model.
