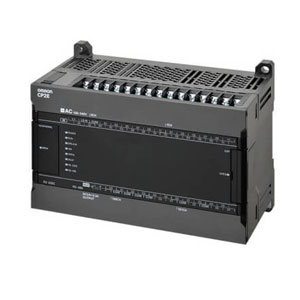

Omron CP2E-S40DT1-D Programmable Logic Controller
The Omron CP2E-S40DT1-D Programmable Logic Controller (PLC) offers a compact CPU Units with 40 points, featuring 18 inputs, and 12 Transistor, (sourcing) outputs for reliable control. With a program capacity of 8K steps and 8K words of data memory, it delivers stable and efficient automation performance. Operating at 24 VDC supply voltage, the unit supports 20.4 to 26.4 VDC operating range, ensuring wide compatibility. Power consumption is 0.34 A at 5 V and 0.02 A at 24 V. Manufactured by Omron, part of the Omron Programmable Logic Controller range, available under the Omron CP2E Series.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CP2E-S40DT1-D |
Omron CP2E-S40DT1-D Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Number of points | CPU Units with 40 points |
| Inputs | 18 points |
| Outputs | 12 points |
| Output type | Transistor, (sourcing) |
| Program capacity | 8K steps (FB capacity: 8K steps) |
| Data memory capacity | 8K words |
| Current consumption 5 VDC | 0.34 A |
| Current consumption 24 VDC | 0.02 A |
| Dimensions (H Γ D Γ W) | 90mm *1 Γ 80mm *2 Γ 150mm |
| Supply voltage | 24 VDC |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 20W max. |
| Inrush current | 24 VDC, 30A for 20 ms max. for cold start at room temperature |
| Insulation resistance | Not csolated between primary and secondary DC, power supplies |
| Power interrupt time | 2 ms min. |
| Altitude | 2,000 m max |
| Atmosphere | No corrosive gas |
| Ambient humidity | 10% to 90% |
| "Ambient operating temperature" | 20 to 60Β°C |
| Ambient storage temperature | -20 to 75Β°C (excluding battery) |
| Weight | 640g max. |
The Omron CP2E-S40DT1-D PLC features 40 I/O points in total, including 18 digital inputs and 12 transistor (sourcing) outputs, providing versatile logic control for high-speed industrial machinery. Its program capacity of 8K steps and data memory of 8K words ensure reliable logic execution for complex tasks. Built to support Function Block programming, it is ideal for automation professionals seeking fast signal response and stable system integration.
Designed to run on a 24 VDC power supply, this PLC operates within a voltage range of 20.4 to 26.4 VDC and delivers power-efficient performance with just 0.34 A at 5 VDC and 0.02 A at 24 VDC. The unit's compact form factorβ90mm Γ 80mm Γ 150mmβfits easily into tight enclosures, while its 30A inrush current for 20 ms enables reliable startup in demanding conditions.
The CP2E-S40DT1-D is trusted for its durability in industrial environments, withstanding ambient temperatures from -20Β°C to 60Β°C, altitudes up to 2,000 meters, and power interruptions as short as 2 ms. With high humidity tolerance and a corrosion-resistant design, this Omron PLC is built for long-term performance.
