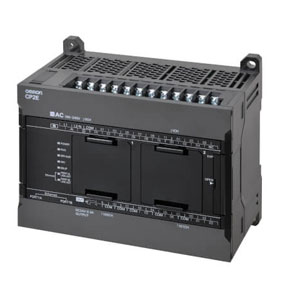

Omron CP2E-N30DR-D Programmable Logic Controller
The Omron CP2E-N30DR-D Programmable Logic Controller (PLC) offers a compact CPU Units with 30 points, featuring 18 inputs, and 12 Relay outputs for reliable control. With a program capacity of 10K steps and 16K words of data memory, it delivers stable and efficient automation performance. Operating at 24 VDC supply voltage, the unit supports 20.4 to 26.4 VDC operating range, ensuring wide compatibility. Power consumption is 0.37 A at 5 V and 0.07 A at 24 V. Manufactured by Omron, part of the Omron Programmable Logic Controller range, available under the Omron CP2E Series.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CP2E-N30DR-D |
Omron CP2E-N30DR-D Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Number of points | CPU Units with 30 points |
| Inputs | 18 points |
| Outputs | 12 points |
| Output type | Relay |
| Program capacity | 10K steps (FB capacity: 10K steps) |
| Data memory capacity | 16K words |
| Current consumption 5 VDC | 0.37 A |
| Current consumption 24 VDC | 0.07 A |
| Dimensions (H Γ D Γ W) | 90mm *1 Γ 80mm *2 Γ 130mm |
| Supply voltage | 24 VDC |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 20W max. |
| Inrush current | 24 VDC, 30A for 20 ms max. for cold start at room temperature |
| Insulation resistance | Not csolated between primary and secondary DC, power supplies |
| Power interrupt time | 2 ms min |
| Altitude | 2,000 m max |
| Atmosphere | No corrosive gas |
| Ambient humidity | 10% to 90% |
| "Ambient operating temperature" | 20 to 60Β°C |
| Ambient storage temperature | -20 to 75Β°C (excluding battery) |
| Weight | 580g max. |
Industrial automation demands controllers that deliver both reliability and efficiency, and the Omron CP2E-N30DR-D rises to the challenge. Part of the proven CP2E series, this Programmable Logic Controller is designed for small to mid-scale systems where accuracy, flexibility, and performance are essential. Its compact design makes it a popular choice among wholesalers, dealers, and distributors who cater to industries seeking high-performance automation equipment at scale.
At its core, the CP2E-N30DR-D provides 18 digital inputs and 12 relay outputs, supporting seamless integration with sensors, actuators, and process machinery. The controller is powered by 24VDC with an acceptable range between 20.4 and 26.4 VDC, ensuring stable operation even in facilities with voltage fluctuations. With a program capacity of 10K steps and 16K-word data memory, the unit enables complex control logic without sacrificing speed or responsiveness. This combination of I/O flexibility and robust memory handling makes it suitable for packaging machinery, conveyor systems, and assembly line automation.
The mechanical design of the Omron CP2E-N30DR-D reflects Omronβs focus on durability and ease of use. Compact in size, measuring just 90 mm Γ 80 mm Γ 150 mm and weighing 640 grams, the unit installs easily into control cabinets where space is limited. Energy efficiency is supported with a maximum power consumption of just 20W, while surge protection allows for 30A inrush current tolerance. These features ensure consistent, reliable performance in demanding production environments, reducing the risk of downtime and increasing overall system availability.
Beyond hardware durability, this Omron PLC CPU is engineered to perform in diverse industrial conditions. The CP2E-N30DR-D withstands operating temperatures ranging from -20Β°C to 60Β°C and altitudes up to 2,000 meters, maintaining stable functionality across global manufacturing environments. Shock resistance up to 150 m/sΒ² and vibration tolerance ensure uninterrupted performance, even in heavy-duty mechanical setups. These rugged features make the controller suitable for OEM applications and industrial plants across automotive, food processing, textiles, and packaging sectors. With its high resilience and versatility, the CP2E Omron PLC offers a dependable platform for scaling automation systems.
For engineers and automation specialists, the Omron CP2E-N30DR-D stands out as a reliable PLC Unit Module with 16K Words of data memory, simplifying complex programming requirements while ensuring data security and processing speed. Many buyers reference the PLC Specifications to validate its suitability for real-world use cases, and the PLC Omron CP2E Datasheet offers detailed technical insights. Whether listed as CP2E-N30DR-D, Omron CP2E-N30DR-D, CP2E N30DR D Omron, or simply PLC CP2E, this model continues to attract interest from wholesalers, dealers, and distributors supplying industrial automation hubs. The combination of scalability, durability, and trusted brand reputation ensures that the Omron CP2E PLC remains a preferred choice for engineers seeking long-term value in automation projects.
