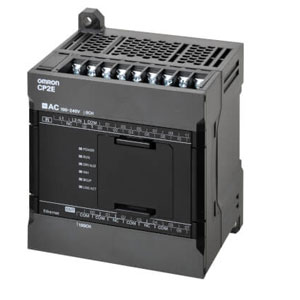

Omron CP2E-N20DT-A Programmable Logic Controller
The Omron CP2E-N20DT-A PLC CPU Unit combines 12 inputs and 8 transistor outputs to provide 20 built-in I/O points for machine-control applications. This Programmable Logic Controller includes a program capacity of 10K steps and 16K words of data memory for control logic and operating information. It uses a 100 to 240 VAC, 50/60 Hz supply with an operating range from 85 to 264 VAC. Current consumption is 0.27 A at 5 V and 0.02 A at 24 V. The CP2E-N20DT-A integrates CPU processing with transistor output switching and belongs to the machine control PLC range supporting Omron machine control.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CP2E-N20DT-A |
Omron CP2E-N20DT-A Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Number of points | CPU Units with 20 points |
| Inputs | 12 points |
| Outputs | 8 points |
| Output type | Transistor (sinking) |
| Program capacity | 10K steps (FB capacity: 10K steps) |
| Data memory capacity | 16K words |
| Current consumption 5 VDC | 0.27 A |
| Current consumption 24 VDC | 0.02 A |
| Dimensions (H × D × W) | 90mm *1 ×80mm *2 × 86mm |
| Supply voltage | 100 to 240 VAC 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Power consumption | 15 VA/100 VAC max., 25 VA/240 VAC max |
| Inrush current | 120 VAC, 20 A for 8 ms max. for cold start at room temperature, 240 VAC, 40 A for 8 ms max. for cold start at room temperature |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between the external AC, terminals and GR terminals |
| Power interrupt time | 10 ms min. |
| Altitude | 2,000 m max |
| Atmosphere | No corrosive gas |
| Ambient humidity | 10% to 90% |
| "Ambient operating temperature" | 20 to 60°C |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Weight | 340g max. |
The CP2E-N20DT-A from Omron features a total of 20 I/O points—12 inputs and 8 transistor (sinking) outputs. It is equipped with a program memory of 10K steps and a data memory capacity of 16K words, making it capable of handling a wide range of logic control tasks. The unit supports a supply voltage of 100 to 240 VAC with an operating voltage range of 85 to 264 VAC, ensuring consistent performance across varied industrial setups.
It is designed to operate in demanding conditions with a wide temperature range (20 to 60°C), and features excellent noise and vibration resistance. The compact body—measuring 90mm x 80mm x 86mm—makes it suitable for panel space-constrained installations. With a power consumption of 15 VA/100 VAC max and low current draw (0.27 A at 5 VDC, 0.02 A at 24 VDC), the CP2E-N20DT-A is highly energy efficient for continuous operations.
Omron has built this controller with robust specifications including 20 MΩ insulation resistance and 10 ms power interruption tolerance, which helps ensure reliability even under power fluctuation scenarios.
