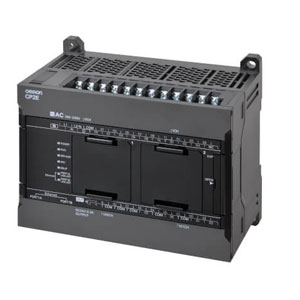

Omron CP2E-N30DT-A Programmable Logic Controller
The Omron CP2E-N30DT-A PLC CPU Unit provides 30 built-in I/O points with 18 inputs and 12 transistor outputs for machine-control applications. This Programmable Logic Controller offers a program capacity of 10K steps together with 16K words of data memory for executing control sequences and storing operating information. It operates from a 100 to 240 VAC, 50/60 Hz supply with a supported operating voltage range of 85 to 264 VAC. Current consumption is 0.52 A at 5 V and 0.03 A at 24 V. The CP2E-N30DT-A combines CPU processing with integrated transistor switching and belongs to the compact PLC controller range within Omron machine control systems.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CP2E-N30DT-A |
Omron CP2E-N30DT-A Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Number of points | CPU Units with 30 points |
| Inputs | 18 points |
| Outputs | 12 points |
| Output type | Transistor (sinking) |
| Program capacity | 10K steps (FB capacity: 10K steps) |
| Data memory capacity | 16K words |
| Current consumption 5 VDC | 0.52 A |
| Current consumption 24 VDC | 0.03 A |
| Dimensions (H × D × W) | 90mm *1 × 80mm *2 × 130mm |
| Supply voltage | 100 to 240 VAC 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Power consumption | 50 VA/100 VAC max., 70 VA/240 VAC max |
| Inrush current | 120 VAC, 20 A for 8 ms max. for cold start at room temperature, 240 VAC, 40 A for 8 ms max. for cold start at room temperature |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between the external AC, terminals and GR terminals |
| Power interrupt time | 10 ms min |
| Altitude | 2,000 m max |
| Atmosphere | No corrosive gas |
| Ambient humidity | 10% to 90% |
| "Ambient operating temperature" | 20 to 60°C |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Weight | 580g max. |
The CP2E-N30DT-A from Omron is designed for high-performance automation with flexibility. It supports up to 30 I/O points, including 18 digital inputs and 12 transistor outputs (sinking), making it suitable for industrial environments where precise control is essential. This PLC supports ladder programming and delivers a generous program capacity of 10K steps with 16K words of data memory, enabling complex logic operations and efficient process management.
Engineered for robustness, the Omron CP2E-N30DT-A operates reliably between 100 to 240 VAC with an input voltage range of 85 to 264 VAC. It consumes 50 VA at 100 VAC and 70 VA at 240 VAC, with inrush current ratings of up to 40 A during cold starts. This unit maintains performance across a wide operating temperature range of 20 to 60°C and ambient humidity up to 90%, and offers 20 MΩ insulation resistance to ensure safety in harsh electrical conditions.
With compact dimensions of 90mm × 80mm × 130mm and weighing only 580g, it’s a space-saving solution for industrial panels. The CP2E-N30DT-A is trusted in factories for its stability, ease of integration, and compliance with global standards.
