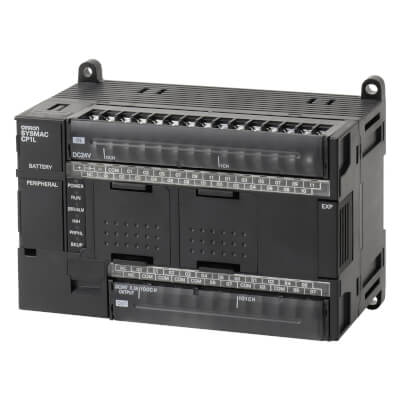

Omron CP1L-M30DT1-D Programmable Logic Controller
The Omron CP1L-M30DT1-D Programmable Logic Controller (PLC) is a compact and efficient CPU Unit delivering 30 I/O points with 18 inputs and 12 transistor outputs. It offers a 10K-step program capacity, 100 kHz high-speed counters (4 axes), and 100 kHz pulse outputs (2 axes), making it suitable for precise motion and sequence control. Powered by a DC supply and equipped with a built-in USB port, it ensures fast configuration and reliable machine performance. Manufactured by Omron, part of the Omron Programmable Logic Controller range under the Omron CP1L Series.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CP1L-M30DT1-D |
| Specification | Value |
|---|---|
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Power Supply | 24 VDC |
| Output method | Transistor output (sourcing) |
| Inputs | 18 |
| Outputs | 12 |
| Program language | Ladder diagram |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 20 W max. |
| Insulation resistance | No insulation between primary and secondary for DC power supply |
| Dielectric strength | No insulation between primary and secondary for DC power supply |
| Noise immunity | Conforms to IEC 61000-4-4. 2 kV (power supply line) |
| Vibration resistance | Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes Γ 10 sweeps = total time of 80 minutes) |
| Shock resistance | Conforms to JIS C60068-2-27. 147 m/s2 3 times each in X, Y, and Z directions |
| Ambient operating temperature | 0 to 55Β°C |
| Ambient humidity | 10% to 90% (with no condensation) |
| Ambient operating environment | No corrosive gas |
| Ambient storage temperature | β20 to 75Β°C (Excluding battery.) |
| Power holding time | 2 ms min. |
| Function blocks | Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST) |
| Instruction length | 1 to 7 steps per instruction |
| Instructions | Approx. 500 (function codes: 3 digits) |
| Instruction execution time | Basic instructions: 0.55 ΞΌs min. Special instructions: 4.1 ΞΌs min |
| Common processing time | 0.4ms |
| Inrush current * | 30 A max. (for cold start at room temperature) 20 ms max. |
In industrial automation, consistent machine control is critical, and the Omron CP1L-M30DT1-D delivers dependable performance for engineers seeking a balance between compact size and advanced control functions. This unit is part of the proven Omron Sysmac CP1L series, well-regarded by system integrators, maintenance engineers, and OEMs for its ease of programming and integration into existing systems. Compact yet powerful, the CP1L M30DT1 D makes it possible to run automation tasks with precision, even in space-constrained control panels.
Technically, the CP1L-M30DT1-D provides 18 digital inputs and 12 transistor (sinking) outputs, supporting 30 I/O points in total. This configuration gives engineers the flexibility to manage both basic machine sequences and more complex automation logic. It operates on a 24 VDC power supply and has a reliable tolerance range from 20.4 to 26.4 VDC. The device supports a program capacity of up to 10K steps and a data memory of 16K words, making it capable of handling sophisticated PLC programs for industrial use. With fast transistor outputs, the CP1L M30DT1 D Omron ensures accurate timing and dependable switching across applications where speed and stability are critical.
Engineers also value the compact physical design of this model. Measuring just 90mm Γ 80mm Γ 150mm and weighing approximately 640 grams, the CP1L-M30DT1-D fits seamlessly into modern control cabinets without consuming excessive space. Despite its small footprint, the unit is rugged enough to handle continuous industrial workloads. It withstands operational temperatures from -20Β°C to 55Β°C and can operate at altitudes up to 2,000 meters. A maximum power consumption of 20W ensures energy efficiency while maintaining stable control performance. These design elements make it a suitable choice for Indian factories where space optimization and durability are top priorities.
From a practical perspective, the Omron CP1L series integrates well into automation lines used in packaging, automotive, food processing, and material handling. The CP1L-M30DT1-D supports advanced programming functions and offers compatibility with popular communication protocols, enabling integration with HMI panels, drives, and SCADA systems. Engineers benefit from its built-in instruction set for positioning, counter management, and pulse output functions, which streamline the development of automation projects. For distributors, dealers, and wholesalers, the Omron CP1L PLC is a product in high demand, given its track record of reliability and easy adoption across industries.
In real-world use, this PLC is trusted to provide stable operation in demanding environments where voltage fluctuations, dust, and vibration are common. Maintenance teams prefer the CP1L Omron model because of its reduced downtime, simple troubleshooting, and the long support lifecycle offered by Omron. Industrial buyers rely on its scalability β it can start small for a single machine and expand for larger systems as production needs grow. This scalability makes it an economical investment for businesses seeking both immediate performance and future flexibility.
When selecting automation solutions, engineers often search for specific models such as Omron CP1L-M30DT1-D, Omron CP1L M30DT1 D, and Sysmac CP1L-M30DT1-D. These terms are synonymous with reliability in automation projects and highlight Omronβs leadership in the PLC market. By choosing the Omron Automation CP1L-M30DT1-D, businesses gain access to a high-performance controller backed by the global expertise of Omron. The Omron Sysmac CP1L remains one of the most dependable choices for modern automation requirements.
