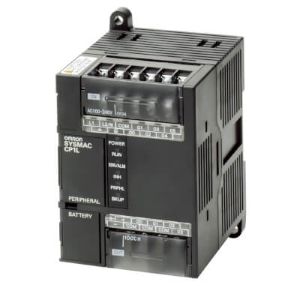

The Omron CP1L-L20DR-A Programmable Logic Controller (PLC) is a reliable CPU Unit offering 20 I/O points, including 12 inputs and 8 relay outputs. It provides a 5K-step memory capacity and supports 100 kHz high-speed counters and pulse output capability on transistor models. Powered by an AC supply, this controller features a built-in USB port for rapid programming and diagnostics. Ideal for compact automation tasks, it ensures dependable performance in small machines. Manufactured by Omron, part of the Omron Programmable Logic Controller range under the Omron CP1L Series.
20 MΩ min. (at 500 VDC) between the external AC terminals
and GR terminals
Dielectric strength
2,300 VAC at 50/60 Hz for 1 min between the external AC and
GR terminals, leakage current: 5 mA max.
Noise immunity
Conforms to IEC 61000-4-4. 2 kV (power supply line)
Vibration resistance
Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for
80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes)
Shock resistance
Conforms to JIS C60068-2-27. 147 m/s2 3 times each in X, Y, and Z directions
Ambient operating temperature
0 to 55°C
Ambient humidity
10% to 90% (with no condensation)
Ambient operating environment
No corrosive gas
Ambient storage temperature
−20 to 75°C (Excluding battery.)
Power holding time
10 ms min.
Function blocks
Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length
1 to 7 steps per instruction
Instructions
Approx. 500 (function codes: 3 digits)
Instruction execution time
Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min
Common processing time
0.4ms
Inrush current *
100 to 120 VAC inputs:
20 A max. (for cold start at room temperature)
8 ms max.
200 to 240 VAC inputs:
40 A max. (for cold start at room temperature), 8 ms max.
