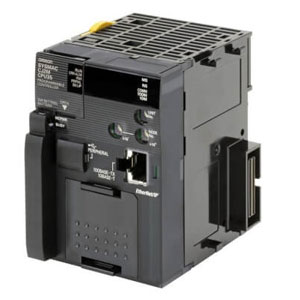

Omron CJ2M-CPU15 Programmable Logic Controller
The Omron CJ2M-CPU15 Programmable Logic Controller (PLC) is a high-capacity CPU Unit delivering 30K steps program size and 160K words data memory for advanced automation tasks. It maintains a rapid 0.04 ฮผs LD execution time and supports 2,560 I/O points, 40 Units, and 3 Expansion Racks. Designed for flexible expansion and complex machine control, it integrates serial communication options and modular system design. Manufactured by Omron, part of the Omron Programmable Logic Controller family, under the Omron CJ2 Series.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CJ2M-CPU15 |
| Specification | Value |
|---|---|
| Program capacity | 60K steps |
| Current Consumption | 5 VDC, 0.5 A |
| Ambient operating temperature | 0 to 55ยฐC |
| Ambient humidity | 10% to 90% |
| Ambient storage temperature | โ20 to 70ยฐC |
| Data memory capacity | 160K words |
| Logic execution time | 0.04 ฮผs |
| Overhead Processing Time | 160 ฮผs |
| Max. number of expansion units | 40 Units |
| Max. number of local I/O points | 2560 |
| Communication port(s) | Serial RS-232C, USB |
| CPU Unit Dimensions (H ร D ร W) | 90 mm ร 75 mmร 31 mm |
| Weight | 130 g or less |
