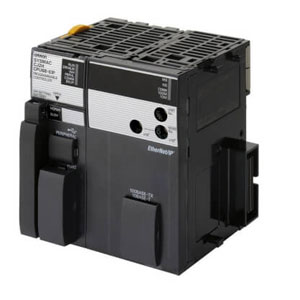

Omron CJ2H-CPU65-EIP Programmable Logic Controller

The Omron CJ2H-CPU65-EIP PLC CPU Unit combines high-speed processing with built-in EtherNet/IP connectivity for networked industrial machine-control applications. This Programmable Logic Controller supports up to 2,560 I/O points and 40 units across 3 Expansion Racks, providing scalable control for modular automation systems. It offers a 50K-step program capacity and 160K words of data memory, including 32K words of DM and 32K words of EM across 4 banks. Its 0.016 μs LD instruction execution supports rapid control processing, while EtherNet/IP provides communication with compatible network devices. The CJ2H-CPU65-EIP combines network connectivity with expandable control and belongs to the Ethernet-enabled PLC range supporting Omron machine automation.

Brand	Omron
Product Type	Programmable Logic Controller
Model Number	CJ2H-CPU65-EIP

Specification	Value
Program capacity	100K steps
Current Consumption	5 VDC, 0.82 A
Ambient operating temperature	0 to 55°C
Ambient humidity	10% to 90%
Ambient storage temperature	−20 to 70°C
Data memory capacity	160 K words
Logic execution time	0.016 µs
Overhead Processing Time	200 μs
Max. number of expansion units	40 Units
Max. number of local I/O points	2560
Communication port(s)	EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB
CPU Unit Dimensions (H × D × W)	90 mm × 65 mm × 80 mm
Weight	280 g
