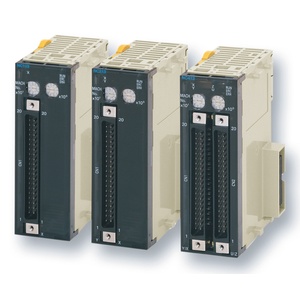

Omron CJ1W-NC433 Programmable Logic Controller
The Omron CJ1W-NC433 Programmable Logic Controller (PLC) delivers 3-axis Position Control with precise pulse-train output for advanced multi-axis motion synchronization. It supports coordinated axis movement, programmable acceleration curves, and accurate positioning in complex automation systems. Designed for servo motor applications, it ensures stable and efficient motion control with minimal wiring. Built for easy integration, this compact PLC module optimizes performance in high-speed machinery. Manufactured by Omron, part of the Omron Programmable Logic Controller family, available under the Omron CJ1W Series.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CJ1W-NC433 |
| Specification | Value |
|---|---|
| Unit type | Special I/O Unit |
| Product name | Position control unit |
| Applicable PLC models | CJ series PLCs |
| No. of axes | 4 |
| Power supply | 5 V DC (for the PCU itself) 24 V DC (external power supply) 5 V DC (external power supply; line driver output only) |
| Allowable power supply voltage range | 4.75 to 5.25 V DC (for the PCU itself) 22.8 to 25.2 V DC (external power supply) 4.75 to 5.25 V DC (external power supply; line driver output only) |
| Internal current consumption | 360 mA max. at 5 V DC |
| Current consumption of external power supply | 30 mA max. at 24 V DC 230 mA max. at 5 V DC |
| Dimensions | 90 (H) Γ 31 (W) Γ 65 (D) |
| Ambient operating temperature | 0 to 55 Β° C |
