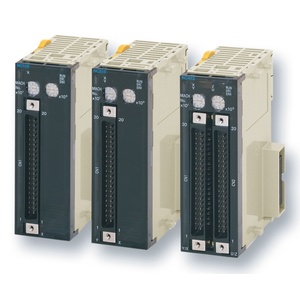

Omron CJ1W-NC233 Programmable Logic Controller
The Omron CJ1W-NC233 Programmable Logic Controller (PLC) provides 3-axis Position Control using pulse-train outputs for precise motor operation. It supports simultaneous axis control with interpolation and acceleration curve configuration. Designed for high-performance automation, it integrates easily with servo drives and stepper motors. Offering accurate positioning and stable operation, this PLC unit enhances synchronized machine performance. Manufactured by Omron, part of the Omron Programmable Logic Controller family, available under the Omron CJ1W Series.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CJ1W-NC233 |
| Specification | Value |
|---|---|
| Unit type | Special I/O Unit |
| Product name | Position control unit |
| Applicable PLC models | CJ series PLCs |
| No. of axes | 2 |
| Power supply | 5 V DC (for the PCU itself) 24 V DC (external power supply) 5 V DC (external power supply; line driver output only) |
| Allowable power supply voltage range | 4.75 to 5.25 V DC (for the PCU itself) 21.6 to 26.4 V DC (external power supply) 4.75 to 5.25 V DC (external power supply; line driver output only) |
| Internal current consumption | 250 mA max. at 5 V DC |
| Current consumption of external power supply | 20 mA max. at 24 V DC 120 mA max. at 5 V DC |
| Dimensions | 90 (H) Γ 31 (W) Γ 65 (D) |
| Ambient operating temperature | 0 to 55 Β° C |
