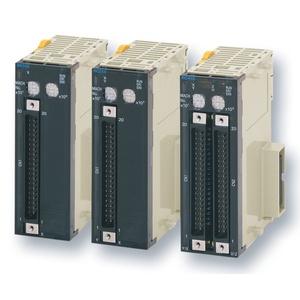

Omron CJ1W-NC133 Programmable Logic Controller

Name: Omron CJ1W-NC133
Brand: Omron
SKU: CJ1W-NC133
Rating: 4.7 (4 reviews)

The Omron CJ1W-NC133 Programmable Logic Controller (PLC) features a 3-axis Position Control Unit with pulse train outputs for advanced motion control. Designed for precision linear or circular interpolation, it supports high-speed pulse output up to 500 kpps. Ideal for servo and stepper drive integration, it ensures smooth synchronized operation. Built for reliability and flexibility, this PLC module enhances automation precision in multi-axis systems. Manufactured by Omron, part of the Omron Programmable Logic Controller family, available under the Omron CJ1W Series.

Datasheet

Brand	Omron
Product Type	Programmable Logic Controller
Model Number	CJ1W-NC133

Specification	Value
Unit type	Special I/O Unit
Product name	Position control unit
Applicable PLC models	CJ series PLCs
No. of axes	1
Power supply	5 V DC (for the PCU itself) 24 V DC (external power supply) 5 V DC (external power supply; line driver output only)
Allowable power supply voltage range	4.75 to 5.25 V DC (for the PCU itself) 21.6 to 26.4 V DC (external power supply) 4.75 to 5.25 V DC (external power supply; line driver output only)
Internal current consumption	250 mA max. at 5 V DC
Current consumption of external power supply	10 mA max. at 24 V DC 60 mA max. at 5 V DC
Dimensions	90 (H) × 31 (W) × 65 (D)
Ambient operating temperature	0 to 55 ° C
