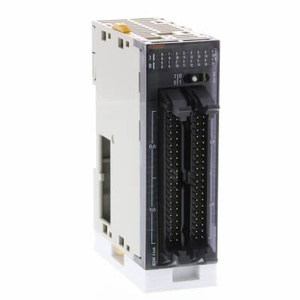

Omron CJ1W-ID262 Programmable Logic Controller
The Omron CJ1W-ID262 Programmable Logic Controller (PLC) Input Unit provides DC input functionality at 24 VDC with 64 input points. It delivers fast response and high-reliability signal capture for Omron PLC systems in automation control. The unitβs compact and durable design enables long-term stability and easy system expansion. Manufactured by Omron, part of the Omron Programmable Logic Controller network, available under the Omron CJ1W Series.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CJ1W-ID262 |
| Specification | Value |
|---|---|
| Unit type | CJ1 Basic I/O Units |
| Product name | DC Input Units |
| I/O points | 64 inputs |
| Input voltage and current | 24 VDC, 4.1 mA |
| Commons | 16 points, 1 common |
| External connection | MIL connector |
| Number of words allocated | 4 words |
| Current consumption (5 V) | 90 mA max. |
| ON Voltage/ON Current | 19.0 VDC min./3 mA min. |
| OFF Voltage/OFF Current | 5 VDC max./1 mA max. |
| ON response time | 8.0 ms max. (Can be set to between 0 and 32 in the Setup.) |
| OFF response time | 8.0 ms max. (Can be set to between 0 and 32 in the Setup.) |
| Insulation Resistance | 20 MΞ© min. between external terminals and the GR terminal (100 VDC) |
| Dielectric Strength | 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max. |
