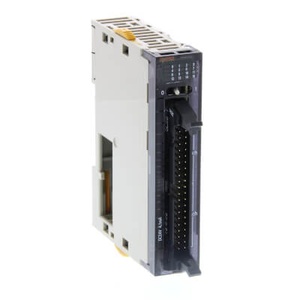

Omron CJ1W-ID232 Programmable Logic Controller
The Omron CJ1W-ID232 Programmable Logic Controller (PLC) Input Unit offers 24 VDC input and 32 input points in a compact, high-performance design. It ensures reliable DC signal detection and noise immunity for Omron PLC automation systems. The unit provides quick response and simplified wiring for versatile industrial applications. Manufactured by Omron, part of the Omron Programmable Logic Controller family, available under the Omron CJ1W Series.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CJ1W-ID232 |
| Specification | Value |
|---|---|
| Unit type | CJ1 Basic I/O Units |
| Product name | DC Input Units |
| I/O points | 32 inputs |
| Input voltage and current | 24 VDC, 4.1 mA |
| Commons | 16 points, 1 common |
| External connection | MIL connector |
| Number of words allocated | 2 words |
| Current consumption (5 V) | 90 mA max. |
| ON Voltage/ON Current | 19.0 VDC min./3 mA min. |
| OFF Voltage/OFF Current | 5 VDC max./1 mA max. |
| ON response time | 8.0 ms max. (Can be set to between 0 and 32 in the Setup.) |
| OFF response time | 8.0 ms max. (Can be set to between 0 and 32 in the Setup.) |
| Insulation Resistance | 20 MΞ© min. between external terminals and the GR terminal (100 VDC) |
| Dielectric Strength | 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max. |
