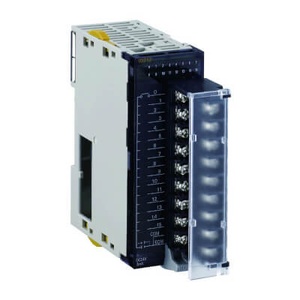

Omron CJ1W-ID212 Programmable Logic Controller
The Omron CJ1W-ID212 Programmable Logic Controller (PLC) Input Unit offers 24 VDC input functionality with 32 input points. Designed to ensure high-speed response and dependable signal detection, it provides reliable integration with Omron PLC systems for automation tasks. This compact module guarantees stable input performance in demanding industrial applications. Manufactured by Omron, part of the Omron Programmable Logic Controller family, available under the Omron CJ1W Series.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CJ1W-ID212 |
| Specification | Value |
|---|---|
| Unit type | CJ1 Basic I/O Units |
| Product name | DC Input Units |
| I/O points | 16 inputs (High speed |
| Input voltage and current | 24 VDC, 7 mA |
| Commons | 16 points, 1 common |
| External connection | Removable terminal block |
| Number of words allocated | 1 word |
| Current consumption (5 V) | 130 mA max |
| ON Voltage/ON Current | 14.4 VDC min./3 mA min. |
| OFF Voltage/OFF Current | 5 VDC max./1 mA max. |
| ON response time | 8.0 ms max. (Can be set to between 0 and 32 ms in the Setup.) |
| OFF response time | 8.0 ms max. (Can be set to between 0 and 32 ms in the Setup.) |
| Insulation Resistance | 20 MΞ© min. between external terminals and the GR terminal (100 VDC) |
| Dielectric Strength | 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max |
