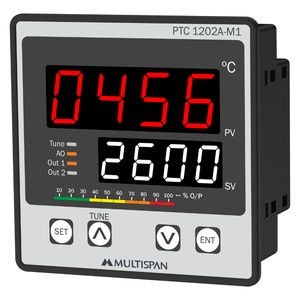

Multispan PTC-1202A-A2-00V Temperature Controller
The Multispan PTC-1202A-M1 Temperature Controller offers 96x96x54(HxWxD)mm size, 0-10V DC + 2 relay output, J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) input, Upper : 4-Digit,7-Seg 0.8โ RED LED
Lower : 4-Digit,7-Seg 0.56โ Green LED display. Manufactured by Multispan under the Multispan Temperature Controller category, this model belongs to the TC Series.
| Brand | Multispan |
| Product Type | Temperature Controller |
| Model Number | PTC-1202A-A2-00V |
Multispan Temperature Controller PTC-1202A-A2-00V Technical Specifications
| Specification | Value |
|---|---|
| Input | J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) |
| Output | 0-10V DC + 2 relay |
| Auxillary Supply | 100-270V AC |
| Size | 96x96x54(HxWxD)mm |
| Supply Voltage | 100 to 270V AC, 50-60Hz |
| Input J | 0 to 600ยฐC |
| Input K | 0 to 1200ยฐC |
| Input PT-100 | -99 to 400ยฐC |
| Input PT.1 | -99.9 to 400.0ยฐC |
| Input 0-10V DC | -999 to 9999 |
| Input 0-20mA DC | -999 to 9999 |
| Input 4-20mA DC | -999 to 9999 |
| Power Consumption (VA Rating) | Approx 7 VA @ 230V AC MAX |
| Operating Temp. | 0ยฐC to 55ยฐC |
| Relative Humidity | Upto 95% RH Non Condensing |
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2004 |
| Resolution | J,K,PT-100 = 1ยฐC PT.1 = 0.1ยฐC 0-10V DC,0-20mA DC,4-20mA DC = 0.1,0.01,0.001,0001 |
| Indication Accuracy | ยฑ1% of FSD |
| Display | Upper : 4-Digit,7-Seg 0.8โ RED LED Lower : 4-Digit,7-Seg 0.56โ Green LED |
| Keys | SET, INC, DEC, ENT |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| Heating | 1. PID Control with Auto-Tuning 2. ON-OFF Control |
| Cooling | 1. BL.TP (Blower Time Proportion) 2. ON-OFF Control |
| Alarm | High/Low/Inband/Outband/ Absolute Low/Absolute Outband |
| Relay | 2 nos. |
| Relay Type | 1 C/O (NO-C-NC) |
| Rating | 5A, 230V AC/30V DC |
| Analog Output | 4 to 20mA DC/0 to 10V DC (Factory Set) |
| Transmitter supply | 24V DC |
| Modbus Communication | RS-485 |
