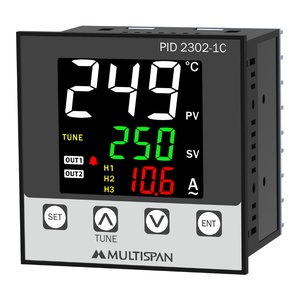

Multispan PID-2302-1C-A2-60AN-X0 Temperature Controller

The Multispan PID-2303-3C Temperature Controller offers 72x72x85(HxWxD)mm size, Relay || SSR + 1 Relay output, J/K+60A 1CT input, Upper: 3-Digit, 7-Seg 0.70” White LED
Middle: 3-Digit, 7-Seg, 0.39” Green LED
Lower: 3-Digit, 7-Seg, 0.33” Red LED display. Manufactured by Multispan under the Multispan Temperature Controller category, this model belongs to the TC Series.

Datasheet

Brand	Multispan
Product Type	Temperature Controller
Model Number	PID-2302-1C-A2-60AN-X0

Multispan Temperature Controller PID-2302-1C-A2-60AN-X0 Technical Specifications

Specification	Value
Input	J/K+60A 1CT
Output	Relay \|\| SSR + 1 Relay
Auxillary Supply	100-270V AC
Size	72x72x85(HxWxD)mm
Supply Voltage	100 to 270V AC, 50-60Hz
Input J	0 to 400°C
Input K	0 to 500°C
Input 3CT	0.0 to 60.0 A
Power Consumption (VA Rating)	Approx 6VA @ 230V AC
Operating Temp.	0°C to 55°C
Relative Humidity	Upto 95% RH (non-condensing)
Protection Level	IP-65 (Front side) As per IS/IEC 60529 : 2001
Resolution	J, K = 1°C
Indication Accuracy	±1% of FSD (FSD: full scale deflection)
Display	Upper: 3-Digit, 7-Seg 0.70” White LED Middle: 3-Digit, 7-Seg, 0.39” Green LED Lower: 3-Digit, 7-Seg, 0.33” Red LED
Keys	SET, INC, DEC, ENT
Panel Cutout (mm)	68 (H) x 68 (W)
Heating	1. PID Control with Auto-Tuning 2. ON-OFF Control
Cooling	1. BL.TP (Blower Time Proportion) 2. ON-OFF Control
Alarm	Heater Break Alarm, Cold Start, High, Low, Absolute Low, Inband, Absolute Outband, OFF, Outband
Relay	3 Nos
Relay Type	1st Relay 1C/O (NO-C-NC), 2nd & 3rd Relay (NO-C)
Rating	5A, 230V AC/28V DC
SSR Output Signal	24V DC, 30mA DC (On-Off condition) Relay 1 parallel to SSR
Modbus Communication	RS-485 Modbus Communication
