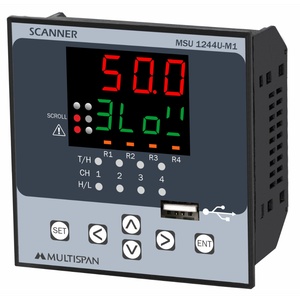

Multispan MSU-1244-M1: Process Control Instruments
The Multispan MSU-1244U-M1 Process Control Instrument offers 96 (H) X 96 (W) X 70 (D) size, 100 to 270V AC,50/60 Hz, Approx7VA power supply, -999 To 9999 range. Manufactured by Multispan under the Multispan Process Control Instrument category, this model belongs to the MS Series.
| Brand | Multispan |
| Product Type | Process Control Instrument |
| Model Number | MSU-1244-M1 |
Multispan Process Control Instruments MSU-1244-M1 Technical Specifications
| Specification | Value |
|---|---|
| Display | UPPER: 4-Digit, 7-Seg 0.70β, RED LED Display LOWER: 4-Digit, 7-Seg 0.50β, GREEN LED Display |
| Size (mm) | 96 (H) X 96 (W) X 70 (D) |
| Panel Cutout (mm) | 92 (H) X 92 (W) |
| Relative Humidity | Upto 95% RH Non Condensing |
| Model | MSU-1244U-M1 |
| Output | 4-Relay (NO-C-NC) 1C/O 5A@230V AC, 5A for Resistive Load with RS-485 RTU MODBUS & USB Data Logger Facility |
| Power Supply | 100 to 270V AC,50/60 Hz, Approx7VA |
| Operating Temperature | 0Β°C To 55Β°C |
| Input Thermocouple | J: 0 to 600β K : 0 to 1200Β°C |
| Analog input | 0 - 10V DC, 0 - 20mA DC and 4 - 20mA DC |
| Input RTD | PT-100/3W -99 to 400β PT.1/3W -99.0 to 400.0β |
| Range | -999 To 9999 |
