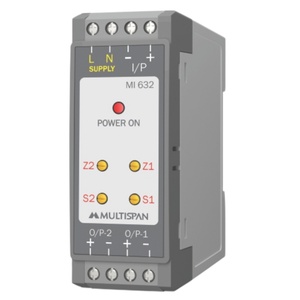

Multispan MI-632-A2-A-AV Signal Isolator
The Multispan MI-632 Process Control Instrument offers 4-20mA DC input, 4-20mA DC Output, Optical - 3 way Isolation Type. Manufactured by Multispan under the Multispan Process Control Instrument category, this model belongs to the MI Series.
| Brand | Multispan |
| Product Type | Signal Isolator |
| Model Number | MI-632-A2-A-AV |
Multispan MI-632-A2-A-AV Signal Isolator - Technical Specifications
| Specification | Value |
|---|---|
| Input | 4-20mA DC |
| Input Inpedance | <100Ξ© |
| CMRR | >120dp (Typical) |
| Temperature Co-efficient | <100 PPM |
| Size (mm) | 76 (H) X 28 (W) X 85 (D) |
| Response Type | <150ms |
| Output Inpedance | <500Ξ© |
| Power Consumption ( VA Rating ) | 5VA @230V AC |
| Isolation Type | Optical - 3 way |
| Isolation between supply, input & Output | At least 1.5KV AC for 1 min |
| Output1 | 4-20mA DC |
| Output 2 | 0-10V DC |
| Auxiliary Supply | 100-270V AC |
