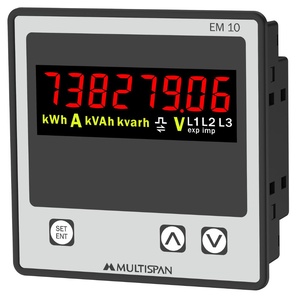

Multispan EM-10-E3-06 Digital Energy Meter
The Multispan EM-10 Digital Energy Meter offers 30 To 300V AC voltage input, 8 digit, 7 segment, 0.5" Red display display, 45 To 65 Hz frequency. Manufactured by Multispan under the Multispan Digital Energy Meter category, this model belongs to the EPM & EMSeries.
| Brand | Multispan |
| Product Type | Digital Energy Meter |
| Model Number | EM-10-E3-06 |
Multispan EM-10-E3-06 Digital Energy Meter - Technical Specifications
| Specification | Value |
|---|---|
| Display | 8 digit, 7 segment, 0.5" Red display |
| Size (mm) | 96(H) X 96 (W) X 43 (D) mm |
| Panel Cutout | 92 X 92 mm |
| Voltage Input | 50 To 520V AC VLL CAT III; 30 To 300V AC VLN CAT III |
| Current Input | 5 Amp or higher through external CT |
| Active Power (KW) | 0.000 To 9999 KW |
| Active Energy (KWh) | 0.000 To 99999999 KWh |
| Power Supply | 100 To 270V AC/DC, 50/60Hz, Approx 3VA |
| Frequency | 45 To 65 Hz |
| Wiring System | 3Ph-4W |
| Protection Level | IP-65 (Front side) As per IS/IEC 60529: 2001 |
| Operating Temperature | 0°C To 50°C |
| Relative Humidity | Up to 95% RH Non Condensing |
| Voltage Network Selection | 3Ø-4Wire |
| Voltage Input (L-N) | 30 To 300V AC |
| Voltage Input (L-L) | 50 To 520V AC |
| Current | CT Input: 60A with DIN 60AX CT |
| Supply | 100 to 270V AC/DC |
