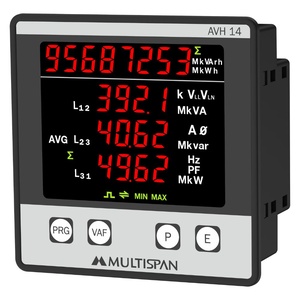

Multispan AVH-14-E3-N1 Multifunction Meter
The Multispan AVH-14 Multifunction Meter offers 96 (H) x 96 (W) x 54 (D) size, 100 to 270V AC/DC supply, 3Γ-3/4Wire / 1Γ 2Wire input signal. Manufactured by Multispan under the Multispan Multifunction Meter category, this model belongs to the THD & IMP Series.
| Brand | Multispan |
| Product Type | Multifunction Meter |
| Model Number | AVH-14-E3-N1 |
Multispan AVH-14-E3-N1 Multifunction Meter - Technical Specifications
| Specification | Value |
|---|---|
| Input Signal | 3Γ-3/4Wire / 1Γ 2Wire |
| CT Primary | up to 6000A (Programmable) |
| CT Secondary | 5 Amp/1 Amp selectable |
| PT Primary | 100V to 520kV (Programmable) |
| PT Secondary | 100V to 520V (L-L) (Programmable) |
| PF Avg. & Per Phase | 0.100 - 1.000 |
| Frequency (Hz) | 45.00 - 60.00 Hz |
| Load hours | 9999.59 Hrs/Min |
| No load hours | 9999.59 Hrs/Min |
| RPM | 3600 RPM @ 60 Hz & 2 pole |
| KW Total | 0.000 - 9999 MW |
| kW Per Phase | 0.000 - 9999 MW |
| kVA Total | 0.000 - 9999 MVA |
| kVA Per Phase | 0.000 - 9999 MVA |
| kVAr Total | 0.000 - 9999 MVAr |
| kVAr Per Phase | 0.000 - 9999 MVAr |
| WH Total | 000.000 - 999999 MWh |
| Vah Total | 000.000 - 999999999.999 MVAh |
| Varh Total | 000.000 - 999999999.999 MVArh |
| Display (Upper) | 8 Digit, 7 Seg 0.40β,RED LED |
| Display (Lower) | 4 Digit, 3 Line 7 Seg 0.39β,RED |
| Key | PROGRAM, VAF, POWER, ENERGY |
| Supply voltage | 100 to 270V AC/DC, 50/60Hz |
| Power consumption (VA RATING) | Approx 4 VA @ 230V AC MAX |
| Communication | RS-485 MODBUS |
| Accuracy | Class 0.5 (Standard) |
| Operating Temp | 0Β°C to 55Β°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
| Size (mm) | 96 (H) x 96 (W) x 54 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| Note | Modbus Available on Request |
| Voltage Network Selection | 3Γ3W/4W, 1Γ2W |
| Voltage | Primary Voltage : 100V to 520KV AC Secondary Voltage : 100V to 520V AC |
| Current | CT Primary : Upto 6000A CT Secondary : 5A/1A Selectable |
| Supply | 100 to 270V AC/DC |
