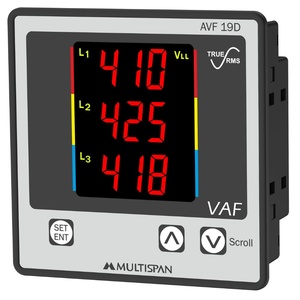

Multispan AVF-19D-B1-N8: Digital AVF Meters
Technical Specifications of Multispan Digital AVF Meters AVF-19D-B1-N8:
| Spec | Value |
|---|
| Direct Voltage AC | 30 to 300V (L - N); 50 to 520V (L - L) |
| Frequency | 45.0 to 65.0 Hz |
| Voltage | VLL, VLN, Avg |
| Power Supply | 230V AC, 50Hz ± 20% |
Multispan Digital AVF Meters AVF-19D-B1-N8 Technical Specifications
| Specification | Value |
|---|
| Direct Voltage AC | 30 to 300V (L - N); 50 to 520V (L - L) |
| Burden (Voltage) | < 0.2 VA |
| Primary CT Ratio | Upto 9999A Selectable |
| Secondary Current AC | 0.1 To 5 Amp |
| Burden (Current) | < 0.2 VA |
| Overload | Upto 6A Continuous |
| Frequency | 45.0 to 65.0 Hz |
| Voltage | VLL, VLN, Avg |
| Current | CT Input: 125A with DIN 125AX CT |
| Frequency (Calculated) | System Frequency |
| Load Hour | Upto 9999 Hr 59 min |
| Accuracy | Class 0.5 (Standard) |
| Power Supply | 230V AC, 50Hz ± 20% |
| Burden (Power) | 3VA |
| Display | 3-Digit, 3-Line, 7-Segment, 0.59” RED LED |
| Key | Set/Ent, Inc, Dec/Scroll |
| LED Indication | A, KA, VLL, VLN, Avg, HZ, L1, L2, L3 |
| Working Temperature | 0 to 55°C |
| Storage Temperature | 0 to 55°C |
| Relative Humidity | Upto 95% RH Non-Condensing |
| Protection Level | IP-65 (Front side As per IS/IEC 60529 : 2001) |
| Size (mm) | 96 (H) x 96 (W) x 43 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
