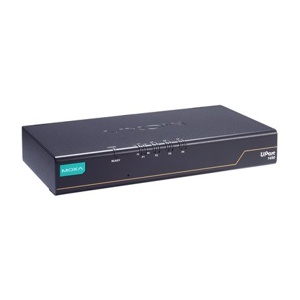

UPort 1400-G2 Series: Moxa 4-port RS-232/422/485 USB-to-serial
Technical Specifications of Moxa 4-port RS-232/422/485 USB-to-serial Converters UPort 1400-G2 Series:
| Speed | 5 Gbps, 480 Mbps, 12 Mbps |
| USB Connector | USB Type B |
| Flow Control | RTS/CTS, XON/XOFF |
| Isolation | 2 kV (I models) |
Moxa 4-port RS-232/422/485 USB-to-serial Converters UPort 1400-G2 Series Technical Specifications:
| Specification | Value |
|---|---|
| Speed | 5 Gbps, 480 Mbps, 12 Mbps |
| USB Connector | USB Type B |
| USB Standards | USB 3.2 Gen 1, USB 1.1/2.0 compliant |
| No. of Ports | 4 |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Isolation | 2 kV (I models) |
| Input Voltage | 5 VDC by USB bus power or 12 to 48 VDC by external power adaptor |
| Input Current | UPort 1410-G2: 183 mA @ USB 2.0, 370 mA @ USB 3.2, 200 mA @ 12 VDC, UPort 1450-G2 models: 266 mA @ USB 2.0, 452 mA @ USB 3.2, 240 mA @ 12 VDC , UPort 1450I-G2 models: 445 mA @ USB 2.0, 633 mA @ USB 3.2, 340 mA @ 12 VDC |
| Housing | Metal |
| Dimensions | 185 x 30 x 90.6 mm (7.28 x 1.18 x 3.57 in) |
| Weight | UPort 1410-G2: 359 g (0.79 lb), UPort 1450-G2 models: 373 g (0.82 lb) , UPort 1450I-G2 models: 379 g (0.84 lb) |
| Operating Temperature | Standard models: 0 to 60°C (32 to 140°F) , -T models: -40 to 75°C (-40 to 167°F) |
| EMC | EN 55032/35 |
| Surge | 0.5 kV |
| IP Rating | IP20 |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
IndMALL Automation Dealing offers Moxa 4-port RS-232/422/485 USB-to-serial Converters UPort 1400-G2 Series at unbeatable prices. The Main Technical Parameters of UPort 1400-G2 Series are speed of up to 5 Gbps, 480 Mbps, 12 Mbps. These sensors are equipped with USB Type B connectors, providing flexible connectivity options. Supporting a wide baud rate range from 50 bps to 921.6 kbps (supports non-standard baudrates), the sensors include flow control options such as RTS/CTS, XON/XOFF ensuring reliable data transmission. Built with 2 kV (I models) isolation (available in I models) for enhanced protection, they operate on a 5 VDC by USB bus power or 12 to 48 VDC by external power adaptor input voltage, making them suitable for various industrial applications. The housing materials are robust, with the Metal. Take the First Step with a Quote for your requirement of Moxa 4-port RS-232/422/485 USB-to-serial Converters. Choose us for unparalleled pricing and support over other Dealers & Distributors.
