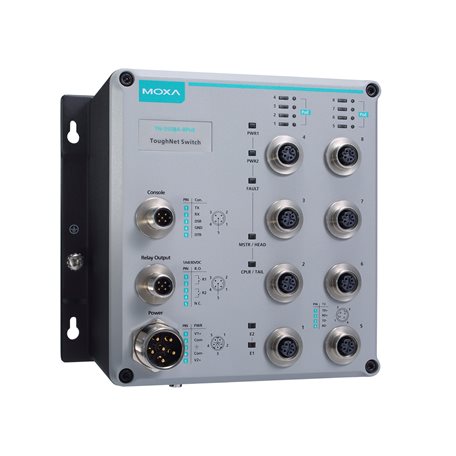

TN-5500A Series: Moxa EN 50155 8 to 18-port Ethernet Switches, 8 PoE
Technical Specifications of Moxa EN 50155 8- to 18-port Ethernet Switches with up to 8 PoE ports and up to 2 GE ports TN-5500A Series:
| Input Voltage | Redundant dual inputs, 24/36/48/72/96/110 VDC |
| No. of Power Inputs | 2 |
| Power Connector | M23 connector |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
Moxa EN 50155 8- to 18-port Ethernet Switches with up to 8 PoE ports and up to 2 GE ports TN-5500A Series Technical Specifications:
| Specification | Value |
|---|---|
| Alarm Contact Channels | 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC |
| 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector) | TN-5510A-2GTX Series: 2, TN-5510A-8PoE-2GTX Series: 2, TN-5518A-2GTX Series: 2, TN-5518A-8PoE-2GTX Series: 2 |
| PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) | TN-5508A/5510A/5516A/5518A Series PoE models: 8 |
| Standards | Telcordia SR332 |
| Configuration Options | Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility |
| Management | Account Management, Back Pressure Flow Control, DHCP Client (options 1/3/50/51/53/54/55/57/66/67), DHCP option 82 (relay agent), DHCP Server (options 1/3/12/15/42/50/55), Flow control, HTTP, ICMP, IPv4/IPv6, LLDP, Loop Protection, Port-based DHCP Server, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Telnet |
| Redundancy Protocols | LACP, MSTP, RSTP, Static Port Trunk, STP, Turbo Chain, Turbo Ring v2, Turbo Ring with DRC |
| Security | Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, TACACS+, Port Lock, RADIUS, Rate Limit, SSH |
| Input Voltage | Redundant dual inputs, 24/36/48/72/96/110 VDC |
| No. of Power Inputs | 2 |
| Power Connector | M23 connector |
| IP Rating | IP54 |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| EMC | EN 55032/35 |
| Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
| Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
| Warranty Period | 5 years |
| Weight | TN-5508A Series non-PoE models: 1,610 g (3.54 lb), TN-5508A Series PoE models: 2,383 g (5.25 lb), TN-5510A Series non-PoE models: 1,805 g (3.97 lb) , TN-5510A Series PoE models: 2,690 g (5.93 lb), TN-5516A Series non-PoE models: 2,138 g (4.71 lb), TN-5516A Series PoE models: 3,286 g (7.24 lb), TN-5518A Series non-PoE models: 2,250 g (4.96 lb), TN-5518A Series PoE models: 3,439 g (7.58 lb) |
Obtain a Quote for Moxa EN 50155 8- to 18-port Ethernet Switches with up to 8 PoE ports and up to 2 GE ports TN-5500A Series at economical prices. Specifications Overview for TN-5500A Series, reveals Telcordia SR332 standards, ensuring reliability and durability in harsh environments. The sensors operate with a flexible input voltage range of Redundant dual inputs, 24/36/48/72/96/110 VDC powered by 2 inputs. The power connectors available include an M23 connector for versatile installations. These sensors are IP54 rated, offering solid protection against dust and limited water ingress. They perform reliably within an operating temperature range of -40 to 75°C (-40 to 167°F) making them suitable for extreme conditions. The sensors meet EMC standards EN 55032/35 and are tested for shock and vibration under IEC 60068-2-27, IEC 61373, EN 50155 ensuring consistent performance in demanding environments. Vibration resistance is certified by IEC 60068-2-64, IEC 61373, EN 50155. Take the First Step with a Quote for your requirement of Moxa EN 50155 8- to 18-port Ethernet Switches with up to 8 PoE ports and up to 2 GE ports. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
