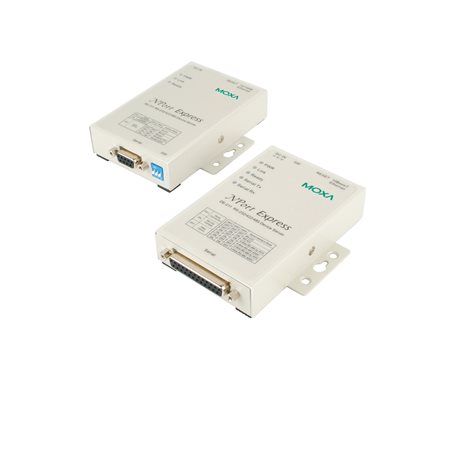

NPort Express Series: Moxa 1-port RS-232/422/485 Serial Device Servers
Technical Specifications of Moxa 1-port Entry-level RS-232/422/485 Serial Device Servers NPort Express Series:
| Databits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Input Voltage | DE-211: 12 to 30 VDC, DE-311: 9 to 30 VDC |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
Moxa 1-port Entry-level RS-232/422/485 Serial Device Servers NPort Express Series Technical Specifications:
| Specification | Value |
|---|---|
| 10/100BaseT(X) Ports (RJ45 connector) | DE-311: Auto MDI/MDI-X connection |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Configuration Options | Windows Utility, Telnet Console, Serial Console |
| Management | ARP, BOOTP, DHCP Client, IPv4, TCP/IP, Telnet, UDP, ICMP |
| Baudrate | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
| RS-485 Data Direction Control | ADDC (automatic data direction control) |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Input Voltage | DE-211: 12 to 30 VDC, DE-311: 9 to 30 VDC |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| EMC | EN 55032/35 |
| Safety | UL 60950-1 |
| Warranty Period | 5 years |
Call us for Moxa 1-port Entry-level RS-232/422/485 Serial Device Servers NPort Express Series at the best rates. Technical Attributes of NPort Express Series, features 10/100BaseT(X) ports DE-311: Auto MDI/MDI-X connection featuring 1.5 kV (built-in) magnetic isolation protection for secure data transmission. These sensors support data bits of 5, 6, 7, 8 with stop bits options of Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k. Parity settings include None, None, Even, Odd, Space, Mark ensuring flexibility in communication protocols. Flow control is managed via None, RTS/CTS, XON/XOFF connections, with RS-485 data direction control, supported through None, RTS/CTS, XON/XOFF (automatic data direction control). The sensors include RS-232 signals for TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND operating on an input voltage range of DE-211: 12 to 30 VDC, DE-311: 9 to 30 VDC. Designed for reliability, 0 to 55°C (32 to 131°F). Compliant with EMC standards EN 55032/35 and safety standard UL 60950-1.Unlock Exclusive Pricing with a Quote for your requirement of Moxa 1-port Entry-level RS-232/422/485 Serial Device Servers. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
